Hammer / Comminuting Mills

!

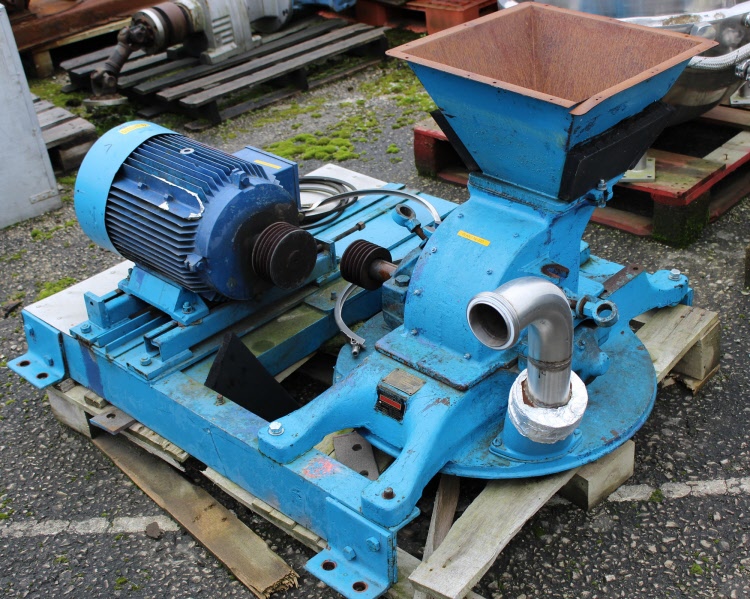

Mikropul Limited Mikropulveriser Size 2W Cast Iron / Steel Hammer Mill

Mikropul
REF:MILLEQPPOW0060

15hp 2900 rpm 380-440/3/50 drive motor. Mounted on mild steel support frame. Top feed hopper

Mikropul Limited Pulveriser Type TH1800 Stainless Steel Hammer Mill

Mikropul
REF:MILLEQPPOW0066

300mm WIDE x 600mm dia rotor consisting of 24 sets of 4 hammers. Total 96 hammers. Spare rotor arrangement available. Powder feed through 3 off 80mm dia holes with auger screws.

Hosakawa Hammer Mill

Hosokawa Rietz
REF:MILLEQPPOW0055

24 off fixed rotary hammers on 100mm DIA shaft. 460mm DIA x 420mm DEEP grinding chamber. 75 kW 1486-rpm 415/3/50 direct coupled motor.

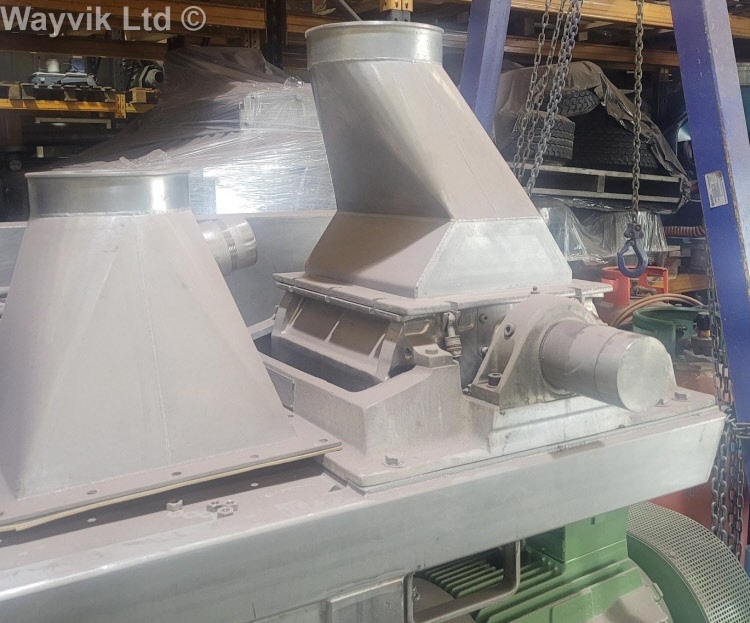

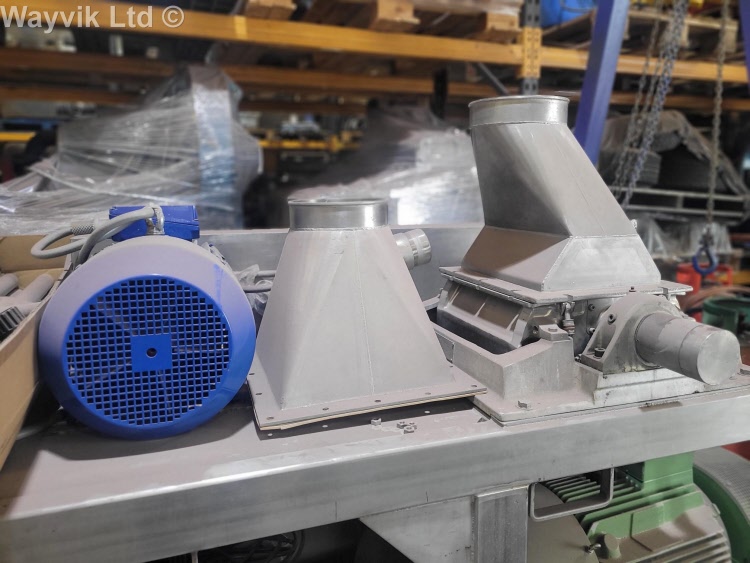

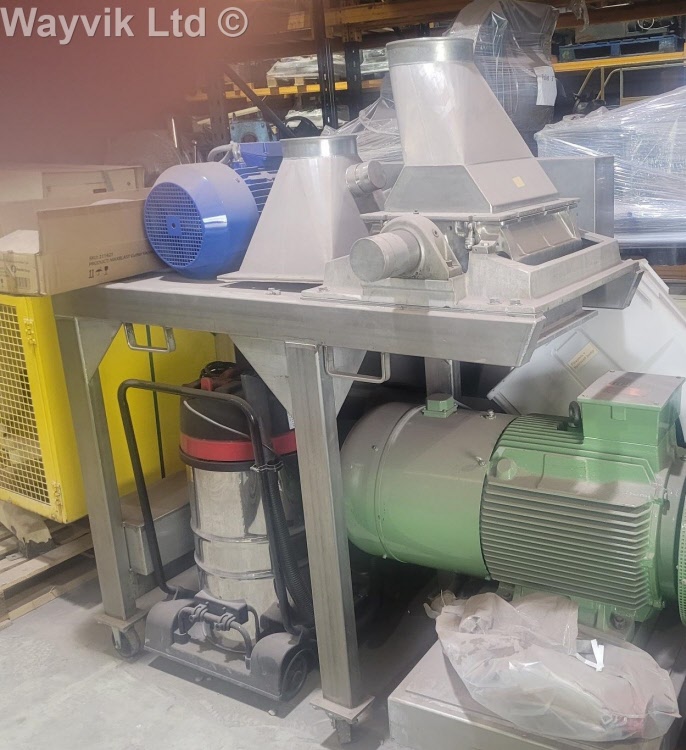

Fitzpatrick Model DKAS012 Stainless Steel Hammer Mill

REF:MILLEQPPOW0076

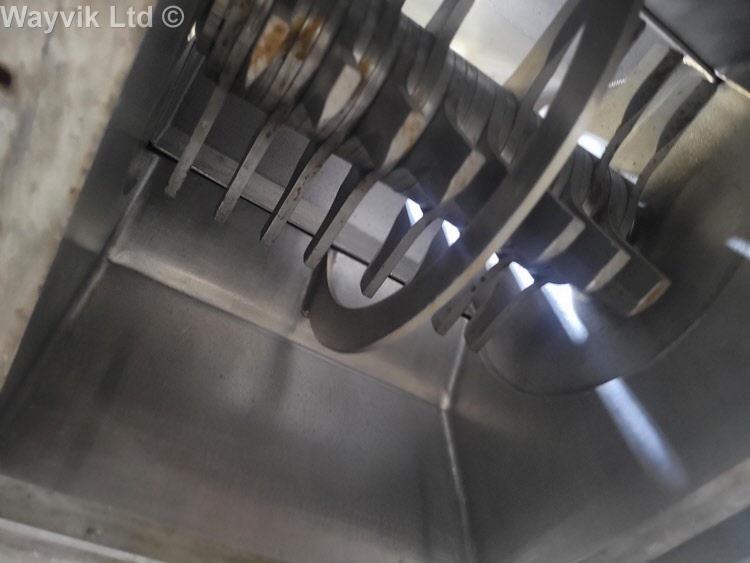

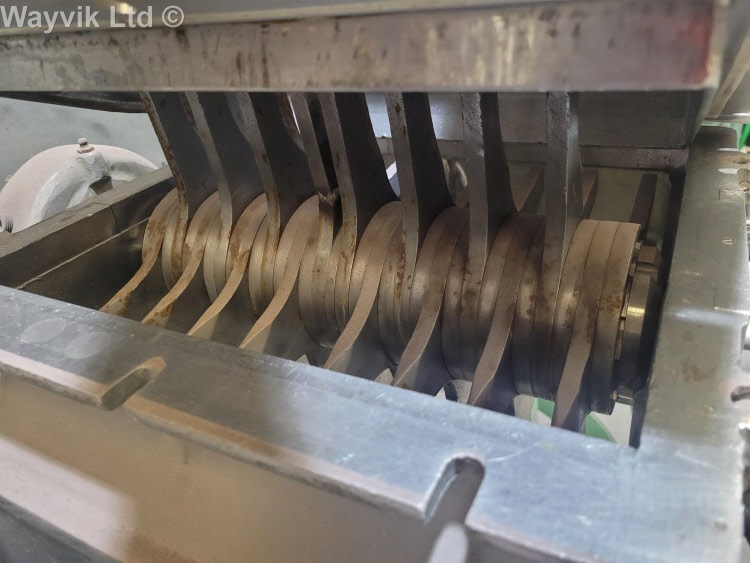

32 off fixed blade double edged, rotary hammers in 300mm wide chamber. Rotor diameter 270mm.

"Dog leg" infeed with 190mm Dia feed aperture Conical discharge chute with 190mm Dia discharge 11kW 1470-rpm 400/3/50 drive motor with belt and pulley transfer.
