Hot Oil Boilers & Steam Generators

!

Babcock Wanson Thermal Fluid Boiler House



4000mm long x 2715mm wide x 3153mm high to top of side. Fitted with 1 x Babcock Wanson model 200B and 1 x Babcock Wanson model 400B gas oil fired thermal fluid heaters, header tank and Allweiler thermal fluid recirculation pump.

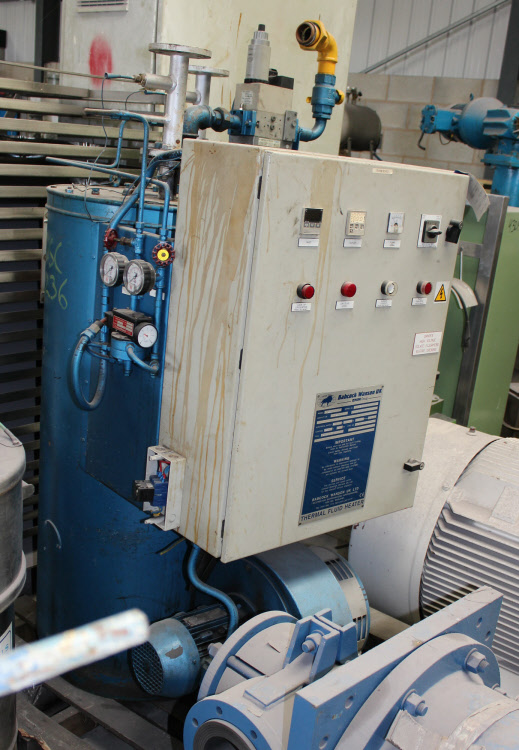

Model 200B – 235kW, (800000Btu/hr) 28 litres per hour gas oil consumption

Model 400B – 470kW, (1600000Btu/hr) 56 litres per hour gas oil consumption

Babcock Wanson 1500RR Gas Fired Steam Generator

Output steam capacity 1600 kg/hr at 100 Celsius. Rated 10 barg, (145 psig) maximum operating pressure.

Wanson Thermopac 1000B Gas Fired Thermal Oil Boiler

Output capacity 4,000,000 Btu/hr, (1175kW). Coil rated 10 barg test pressure. 4kW 415/3/50 fan.
