Ploughshare Powder Mixer

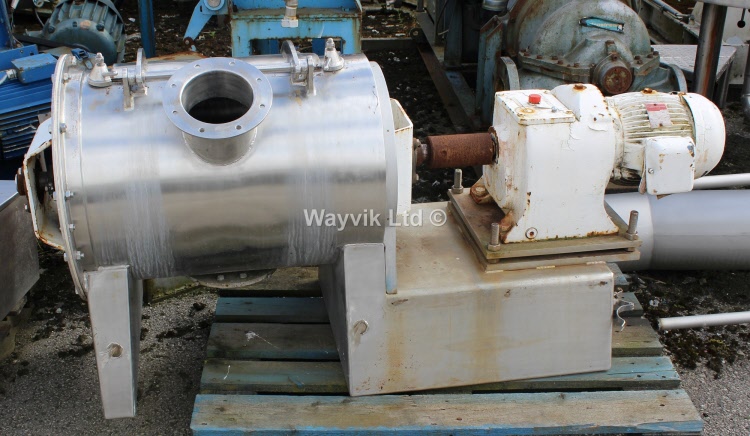

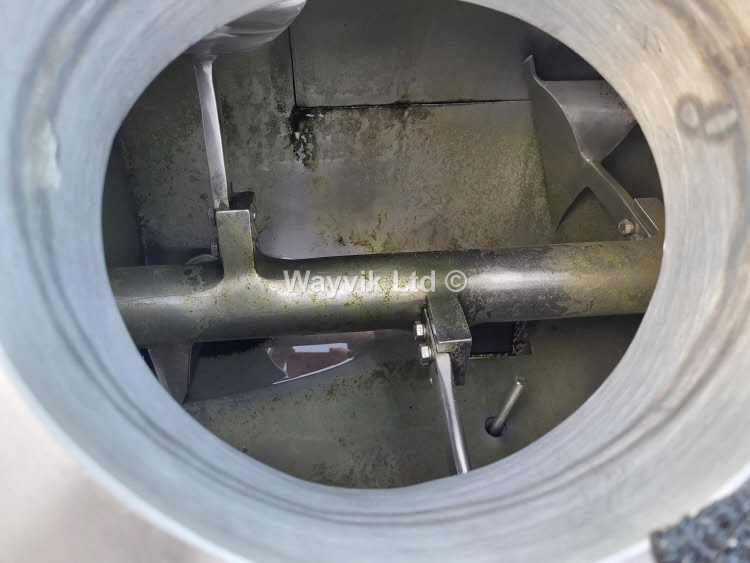

500mm dia x 700mm long body. 4kW 415/3/50 geared motor drive giving 76-rpm shaft output speed. Ex-food product application.

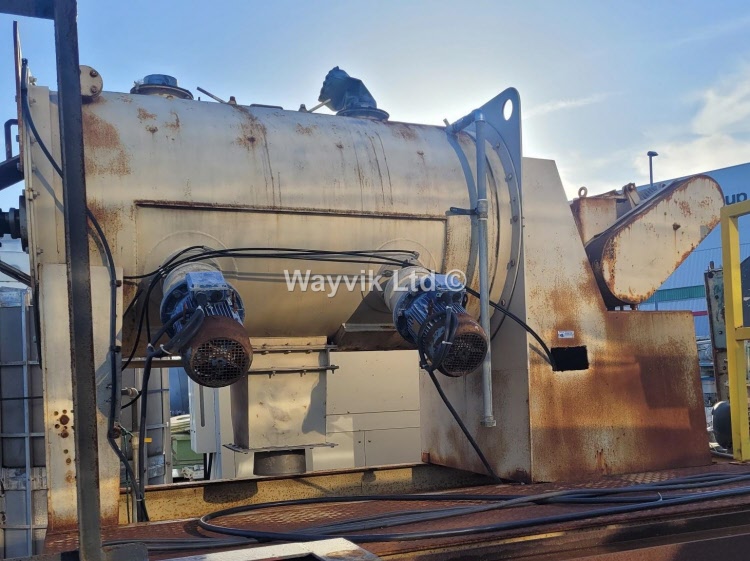

5 bar jacket. EExd IIB T4 rated side refiner and variable speed main drive. Bomb door discharge.

7.5kW 1440-rpm 415/3/50 EExd IIB T4 main drive motor. 4kW 1430-rpm 380-420/3/50 side intensifier. Bomb door discharge.

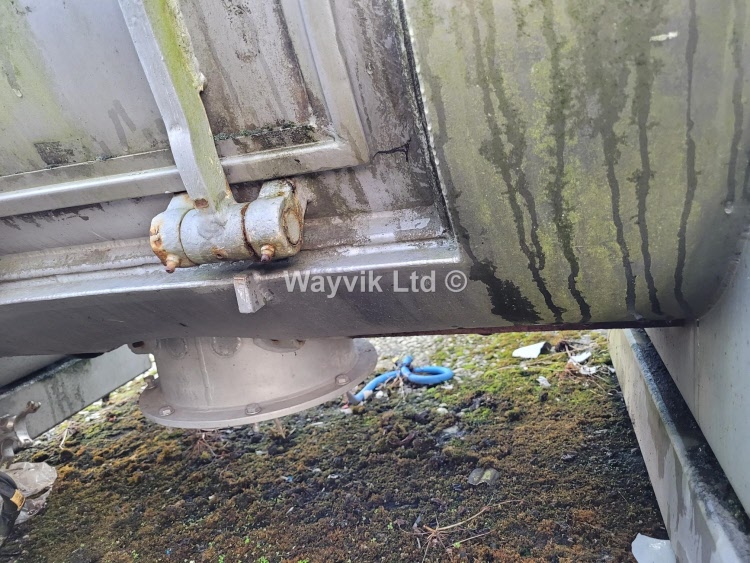

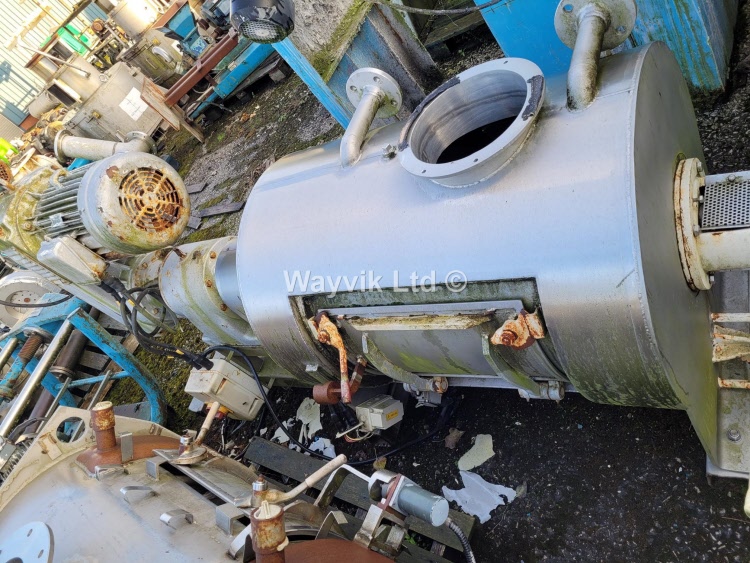

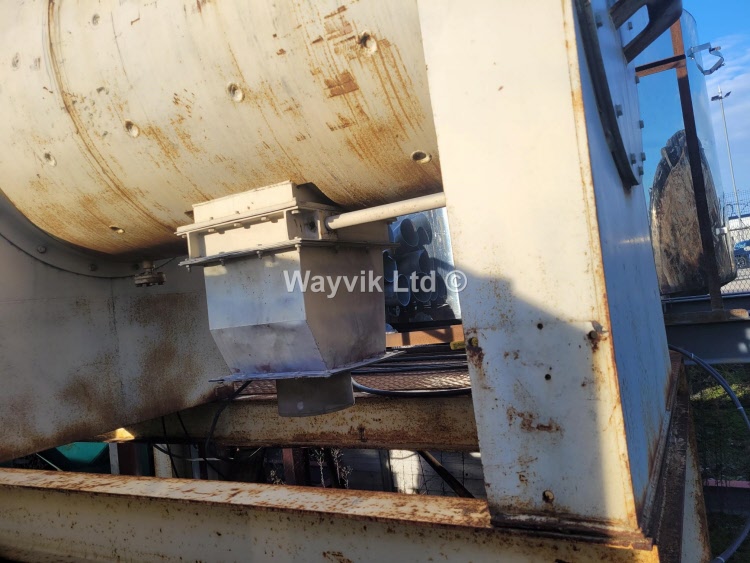

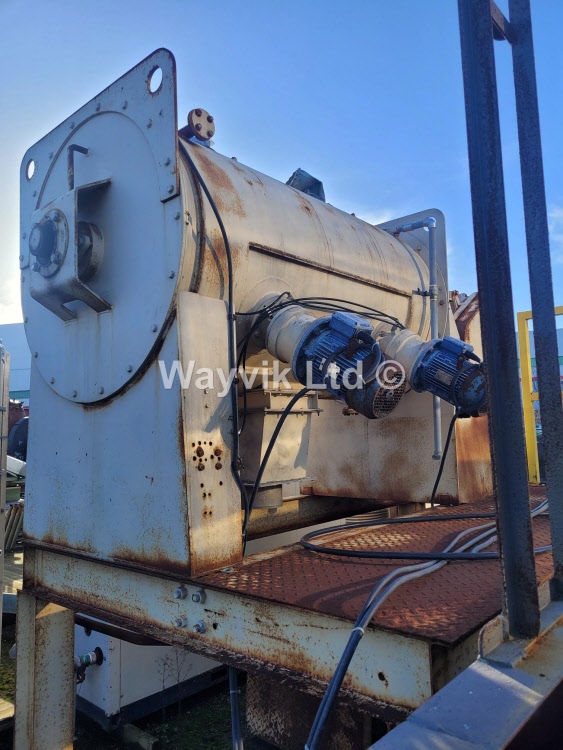

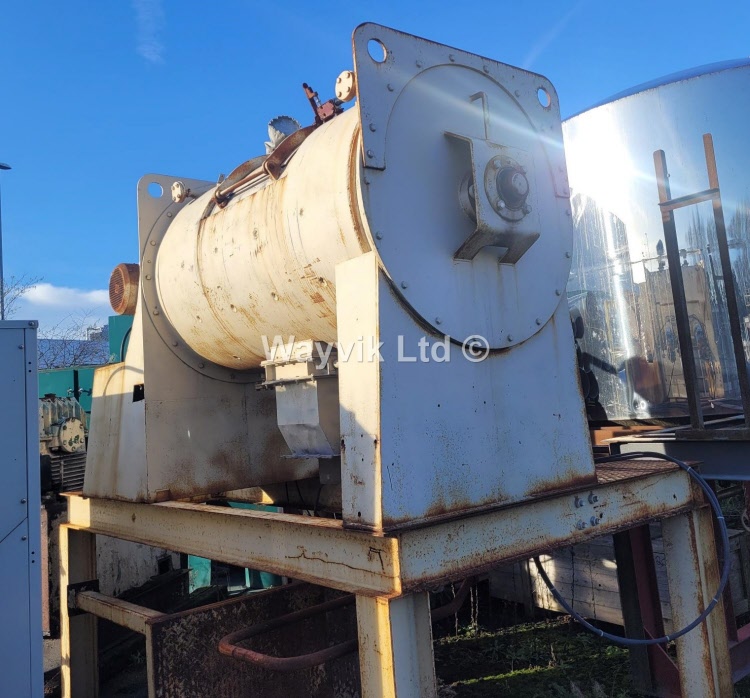

625mm dia x 993mm long barrel. 250mm dia top inlet / vent connection and 125mm x 125mm dia bottom centre bomb door outlet with side handle operation. 500mm long x 350mm wide side access / charge door. Estimated 7.5kW 1440-rpm 415/3/50 drive motor. External fully welded jacket for steam / hot or cold water temperature control. Ex-food product application.

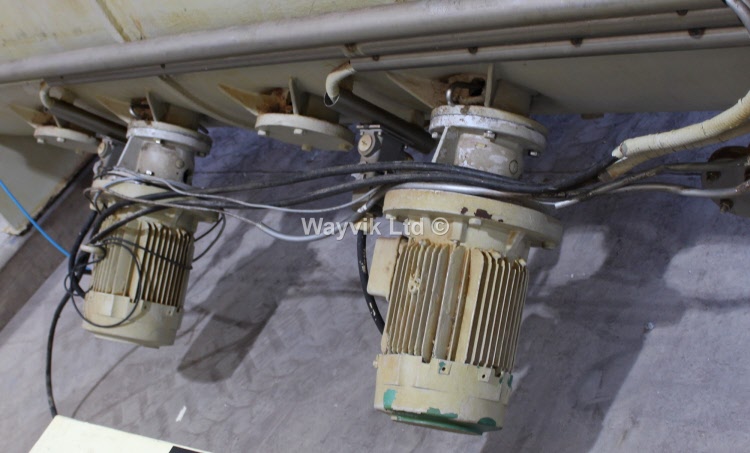

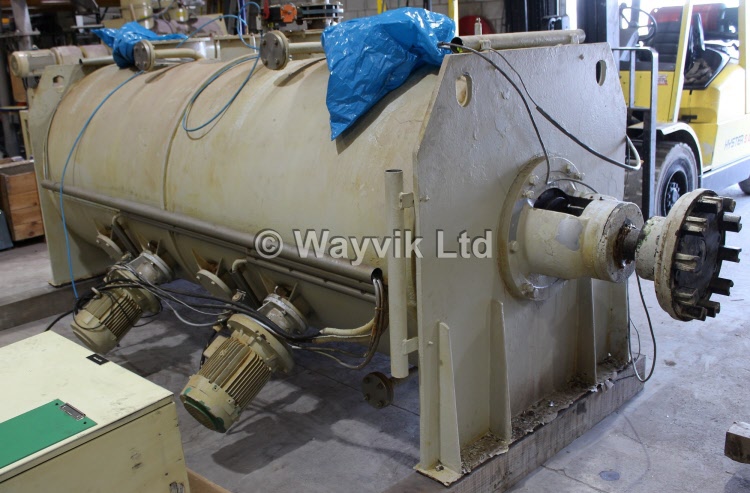

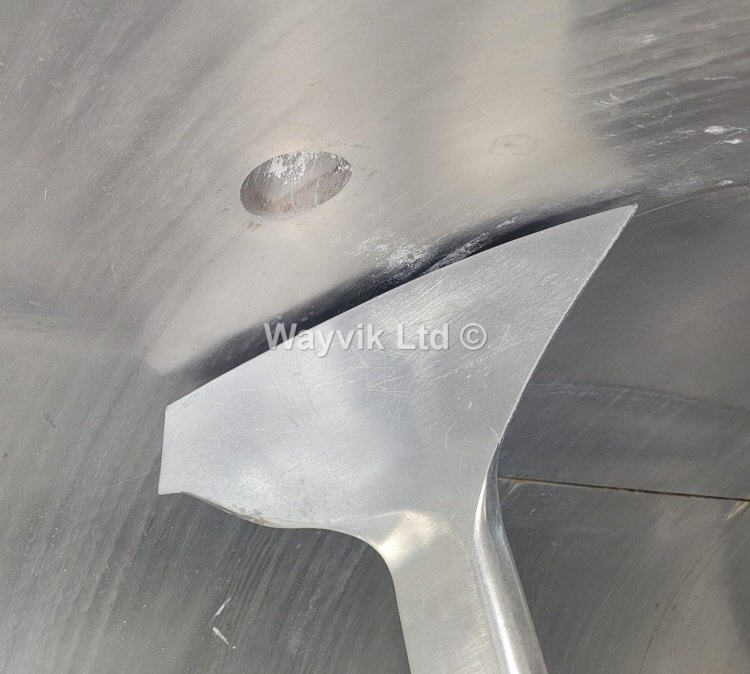

1000 litres gross volume barrel 900mm dia x 1.7m long. Estimated 15kW 415/3/50 drive motor with belt and pulley plus reduction gearbox drive. Adjustable clearance "Becker" blades. Twin 3kW 1420-rpm high speed refiners. 300mm square pneumatically actuated bomb door. Low pressure mild steel temperature control jacket.

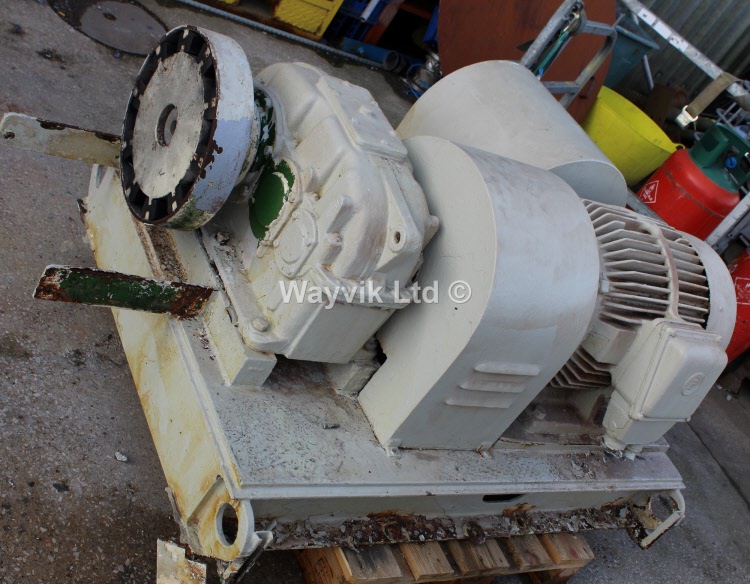

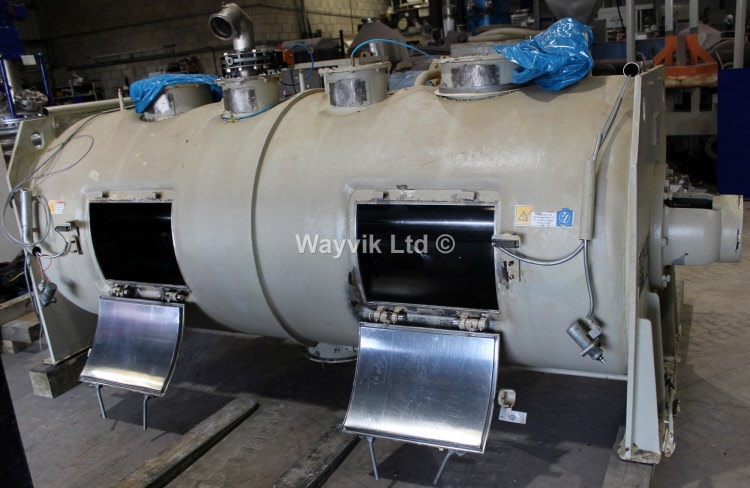

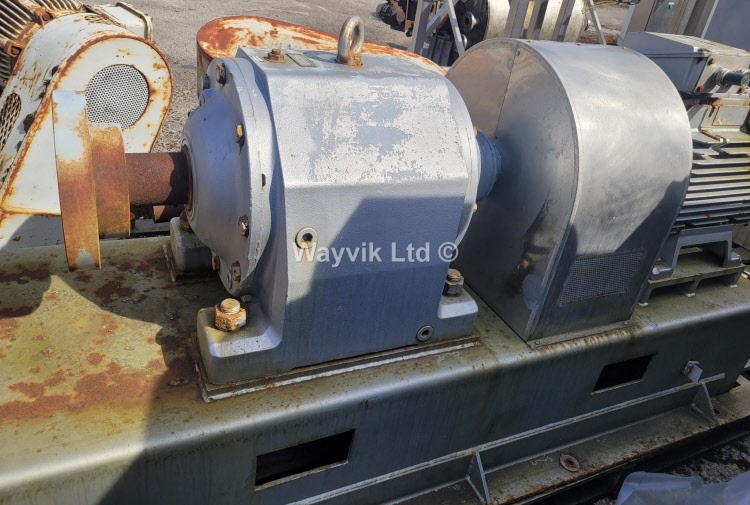

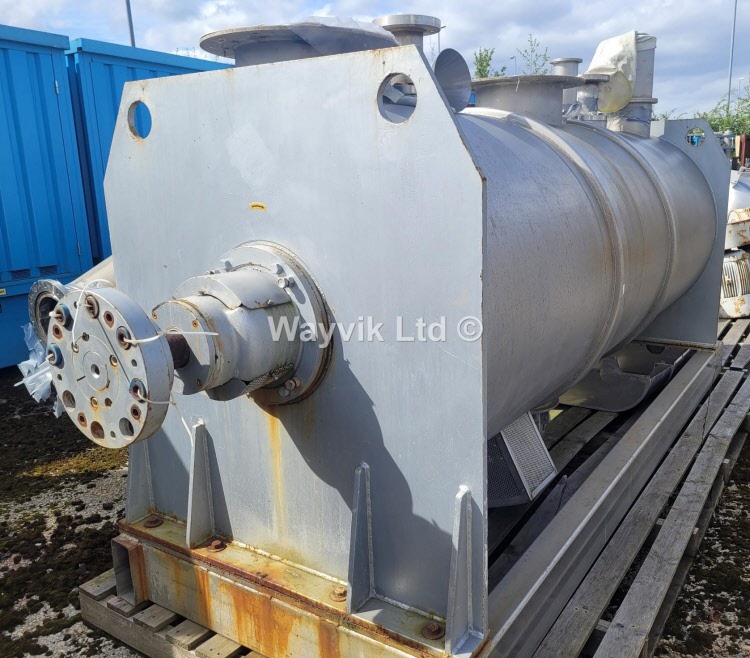

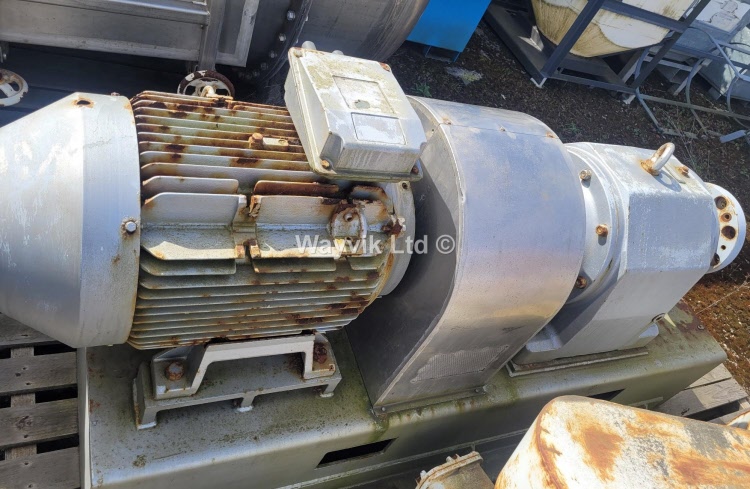

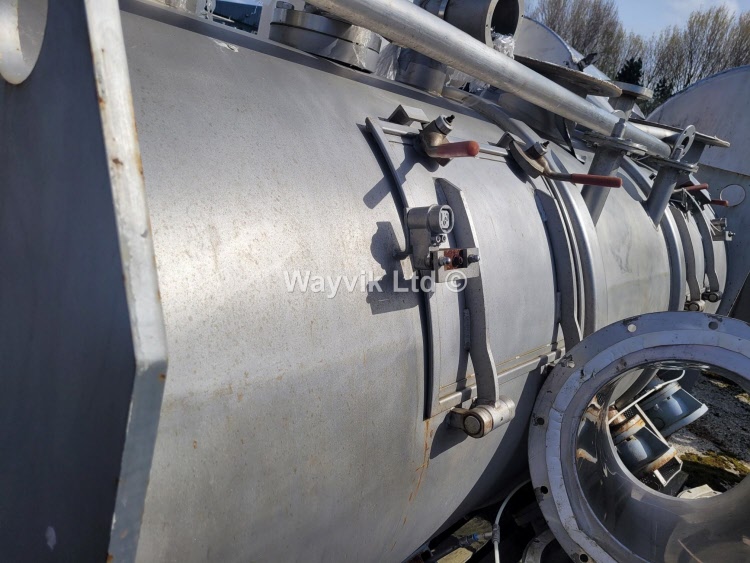

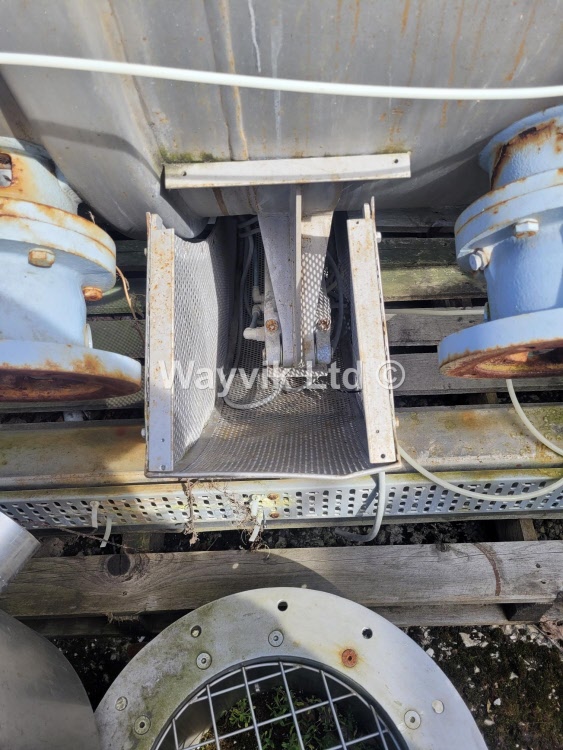

55kW 1470-rpm 400/3/50 motor with reduction gearbox giving shaft speed of 124.78-rpm. 230mm x 230mm pneumatically operated bomb door. 4 side choppers and twin side access doors.
