Glass Lined Reactors

!

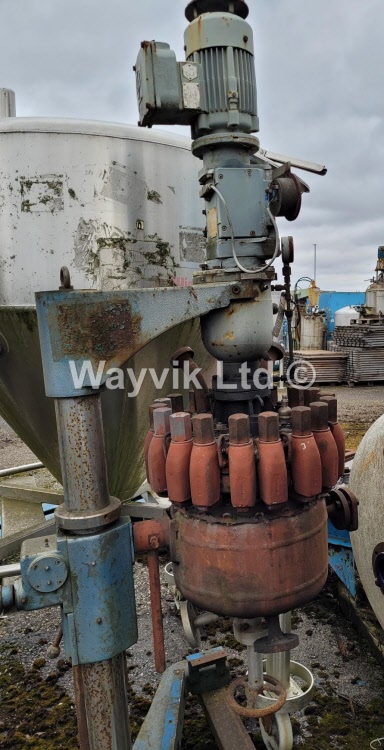

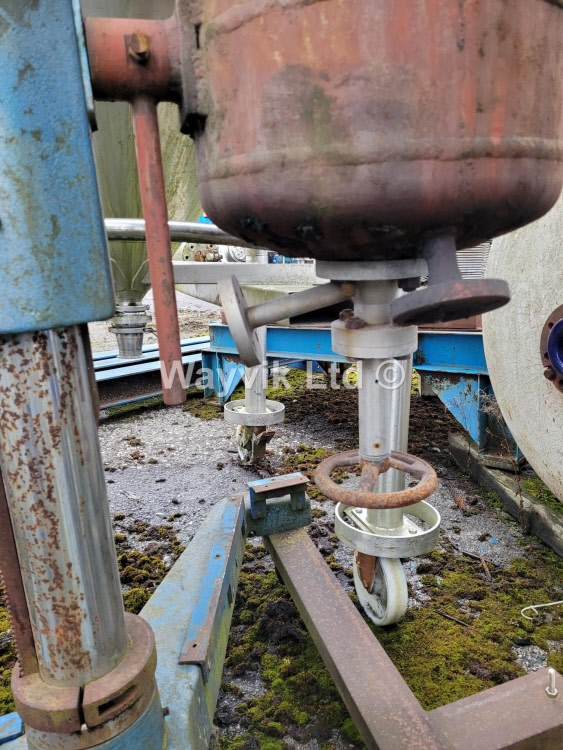

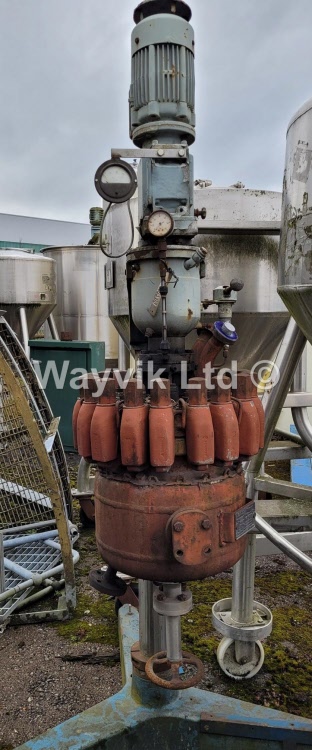

155 Litres Glass Lined Reactor 21 barg Full Vacuum

Approximately 2 hp drive motor and reduction gearbox for 3-blade retreat curve agitator with mechanical seal and pressure feed pot. Internally rated for 21 barg / full vacuum working pressure. Jacket rated for 7 barg / full vacuum. Operating temperature +200 C / -10 C. All flanges are faced with stainless steel 904L, (1.4584). Spark tested throughout. Manufactured by Technoglass

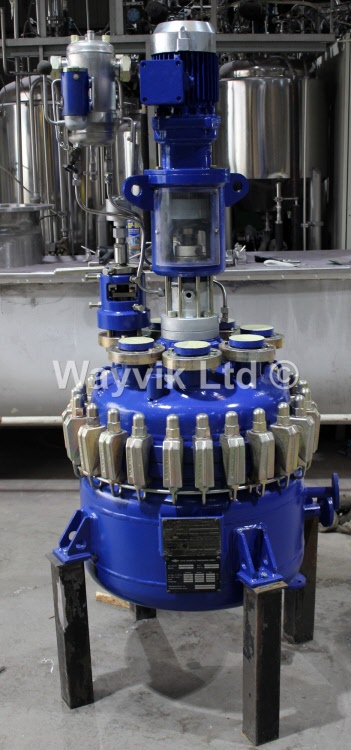

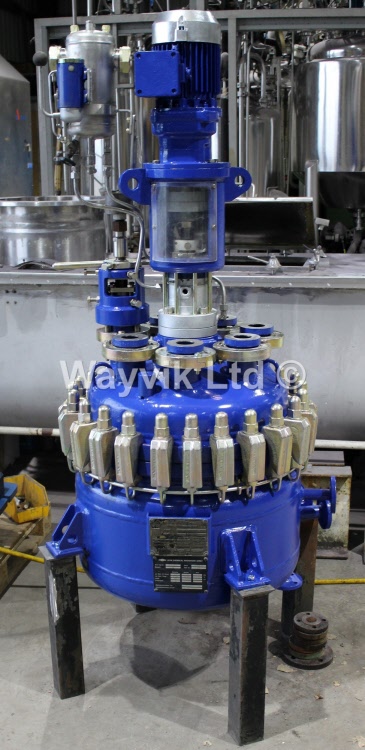

700 Litre Glass Lined Reactor

Internally rated 6 barg / Full Vac. Jacket rated 7 barg / full vacuum. orking temperature -25 / 200 Celsius. Variable speed drive. Built by DeDietrich.

1180 Litres Glass Lined Reactor

Internally rated for 6 barg / full vacuum. Jacket rated for 6 barg / full vacuum. Working temperature -10 / 200 Celsius. White glass (Nucerite) anchor agitator. Manufactured by DeDietrich.

2030 Litres Glass Lined Reactor Body

Internally rated 6 barg / full vacuum. Jacket rated for 6 barg / full vacuum. Working temperature -30 / 200 Celsius. Manufactured by DeDietrich.

3103 Litres Glass Lined Reactor Body

Type "E3000". Internally rated 6 barg / Full Vac. Jacket rated 6 barg. 200 Celsius working temperature. Reglassed then unused. Manufactured by Pfaudler
