Stainless Steel and High Alloy Reactors

!

5 Litre Medimex Stainless Steel 317 Reactor

Lift off top lid. Rated for 40 barg @ 250C. Induction heated. Variable speed agitator. Pneumatic top lift mechanism

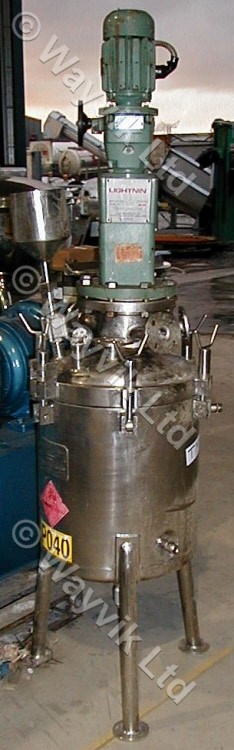

50 Litres Stainless Steel Reactor

400mm DIA x 430mm DEEP on straight with dished base and removable dished top. Lightnin 11925V11 variable speed agitator. 0.25kW 380 - 420/3/50 1425-rpm motor. 3-blade A310 impeller. Vacuum dip pipe descends below the bottom of the agitator level for vessel emptying under vacuum. Internally rated 100 psi / Full Vacuum. Jacket rated 50 psi.

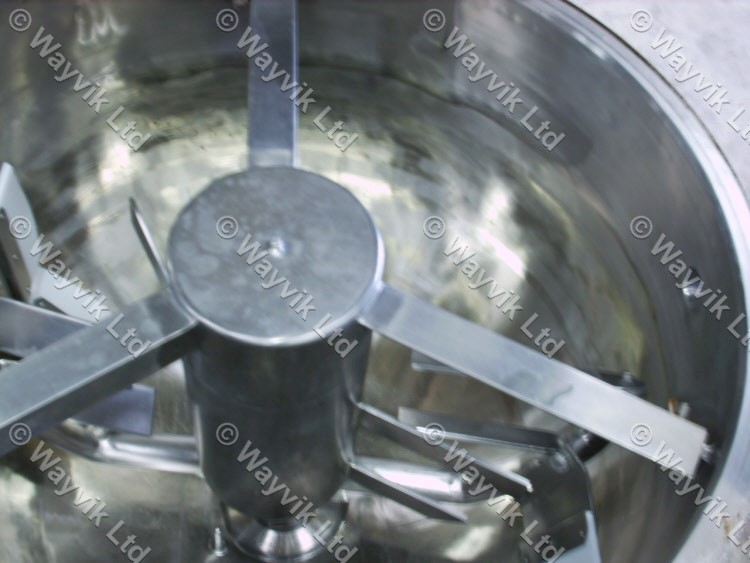

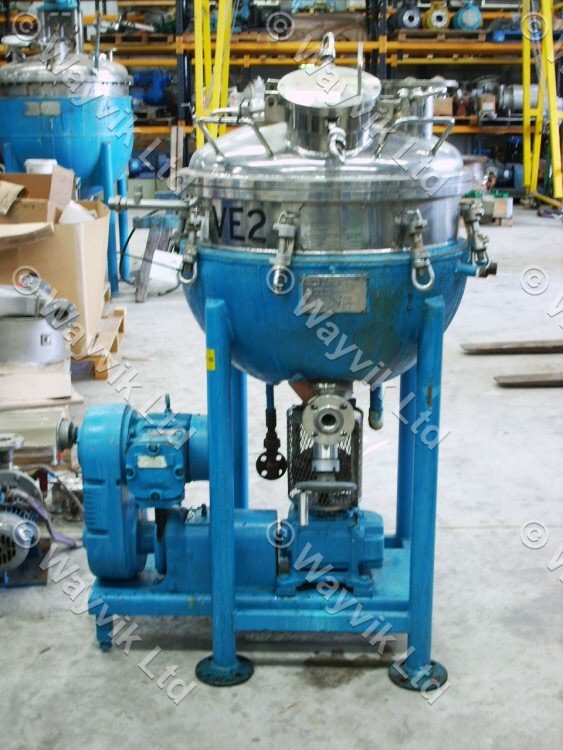

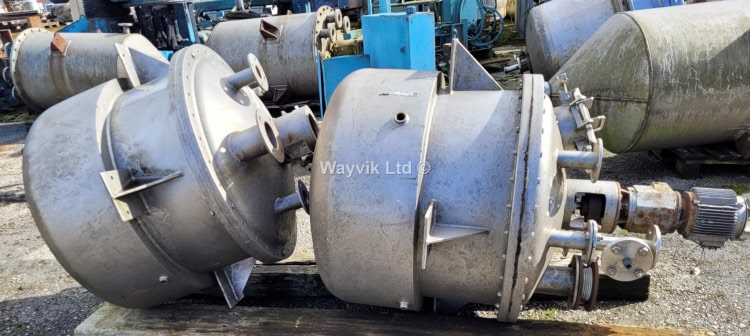

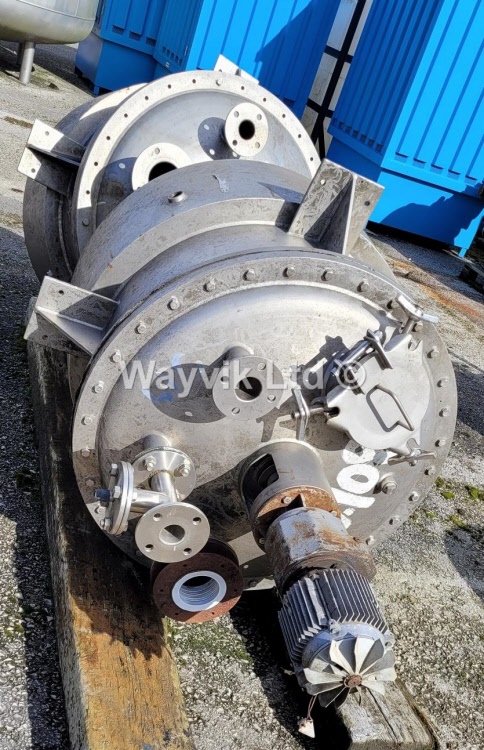

138 Litres Stainless Steel Hemispherical Reactor

680mm DIA x 155mm DEEP on straight side with 340mm DEEP bottom dish. Hinged dished top. Bottom drive 1.1 kW 1400 rpm EExdIIB T5 415/3/50 motor and variable speed gearbox. Internally rated 0.7 barg working pressure. Jacket rated 3 barg working pressure. Manufactured by T. GIUSTI and Son.

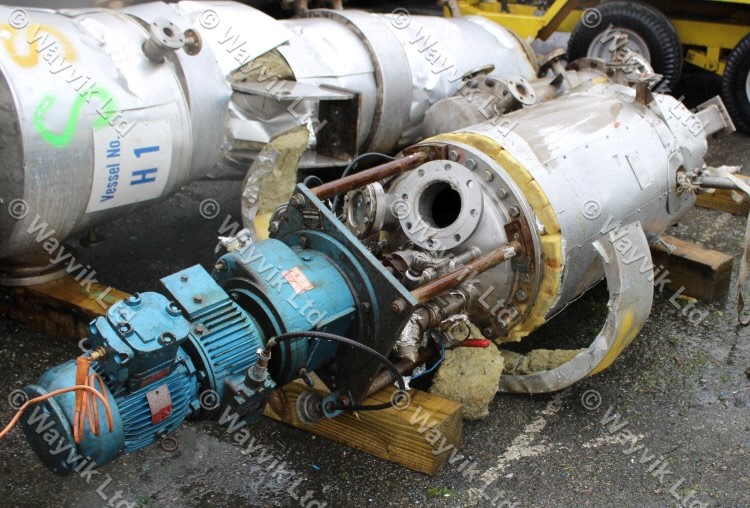

175 Litres Stainless Steel Reactor

480mm DIA x 900mm deep on straight. Welded dished base & bolted dished top. 4kW 1430-rpm 415/3/50 EExd IIB T4 motor driving variable speed gearbox. Shaft output speed 48 / 290 rpm 3 sets of 4 blade angled turbines. Design pressure: 30 psig & Full Vacuum. Stainless steel external limpet coil design pressure: 60 psig

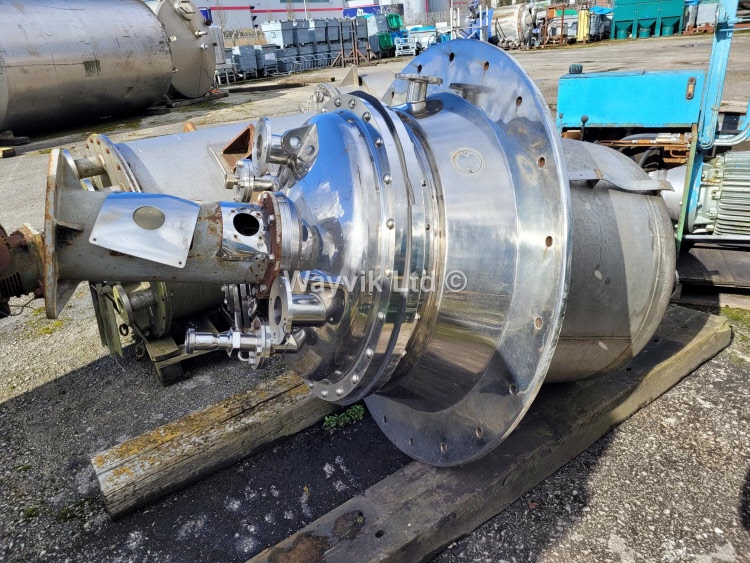

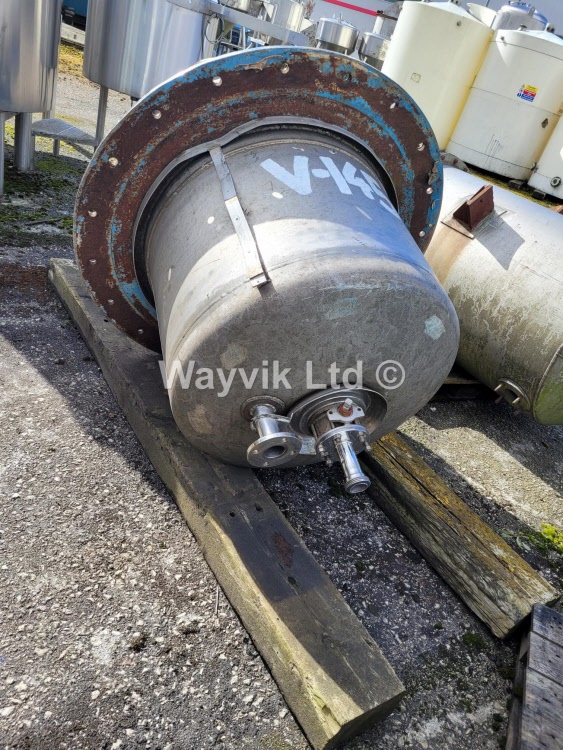

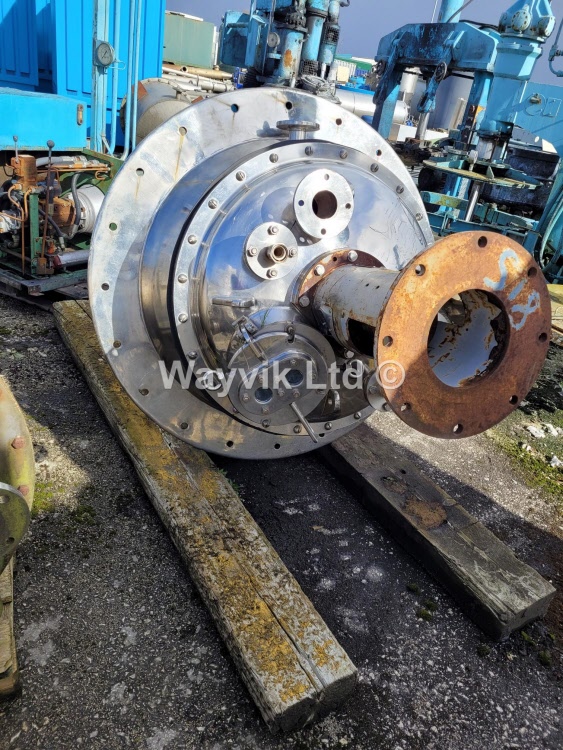

270 Litres Hastelloy C276 Reactor

600mm dia x 707mm deep on straight side. Welded dished base. Bolted dished top. End configuration and depth: Approximately 130mm deep fully welded dished base and fully bolted dished top. Chemineer model 300TN-0.37 three blade angled turbine agitator with mechanical seal. 0.37kW 1350-rpm 380-415/3/50 EExd II 2G IIc T4 drive motor. Design pressure: 20.0 barg & Full Vacuum. Stainless steel jacket to shell and bottom dish design pressure 7 barg. Internal hastelloy C276 coil design pressure 7 barg. Manufactured by Bibbys of Halifax

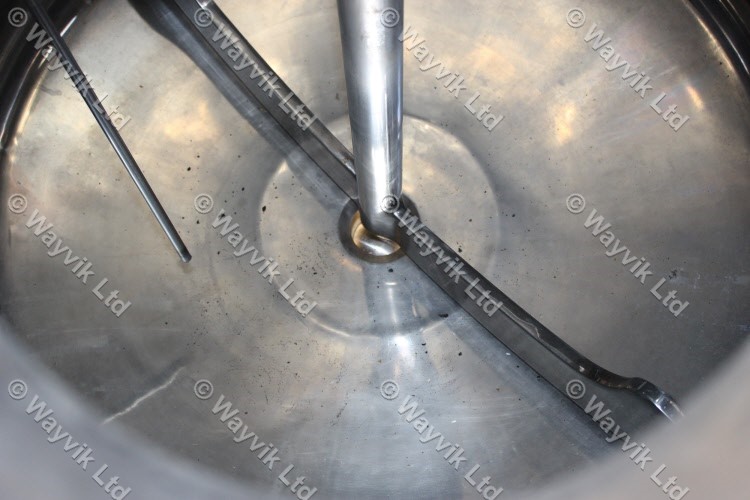

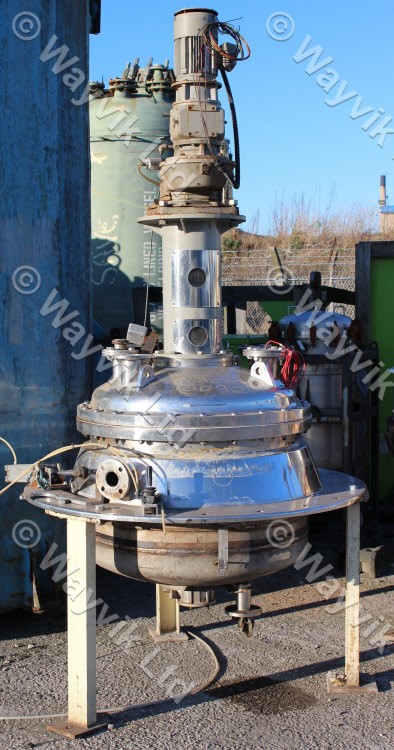

350 Litres Stainless Steel Reactor

800mm dia x 620mm deep on straight side plus 120mm deep bottom dish. Full stainless steel jacket to sides and bottom dish. Internal working pressure 3 barg / full vacuum. Jacket working pressure 3 barg. 1.5kW 415/3/50 1420 rpm motor driving through a variable speed reduction gearbox combination. Maximum speed 14.96 rpm. Full internal surface polish. Ex-food application.

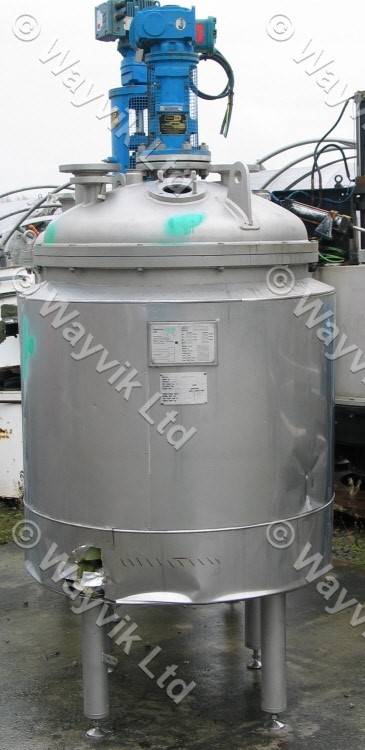

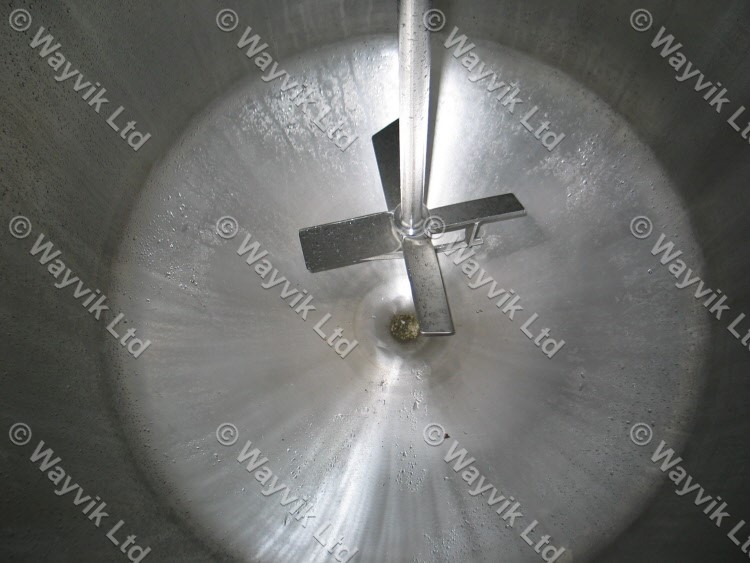

800 Litres Agemore Surmet Stainless Steel 316L Reactor

920mm dia x 1080mm deep on the straight side. Fully bolted 260mm deep top dish and 260mm deep bottom dish. Transkem  type TK.GPM.MT agitator with 4 blade angle paddle turbine. 1.0 kW inverter rated EExd IIB T3 284-1420 rpm 415/3/50 motor. Shaft output speed 19 - 194 rpm. Internally rated 0.5 barg / Full Vacuum. Jacket rated 4.5 barg. Built by Agemore Surmet.

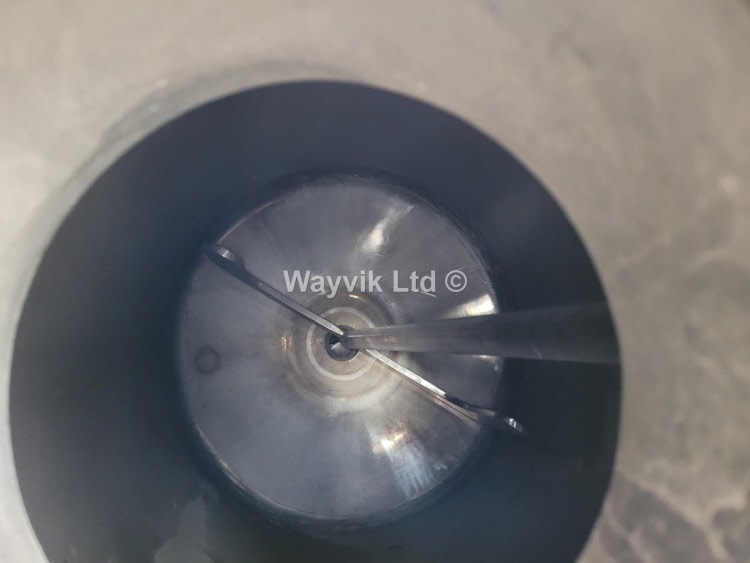

980 Litres Stainless Steel Reactor

960mm DIA x 1220mm deep on the straight. 200mm deep welded bottom dish. Fully bolted dished top. MORSTAN type LTG2 / 1SB agitator. Approx 1 hp 415/3/50 motor. 3-blade marine type propeller. Internal surface polish. Low pressure mild steel heating / cooling jacket to vessel side only.

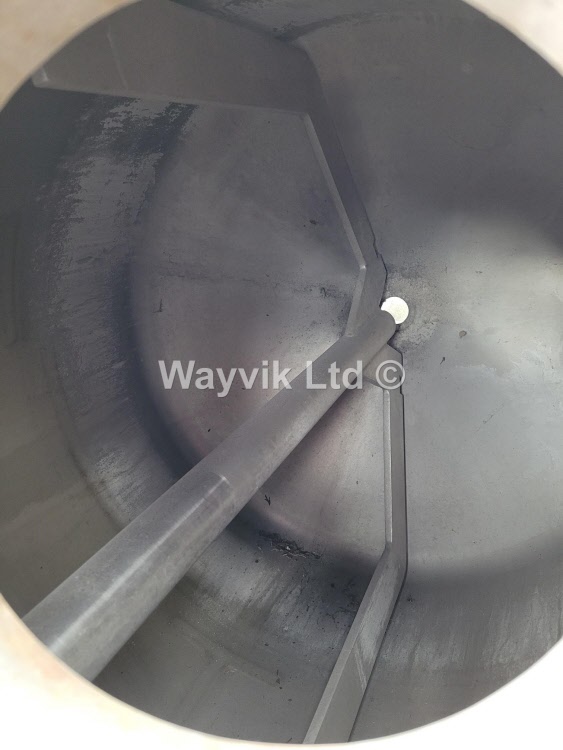

2500 Litres Stainless Steel Reactor

1440mm DIA x 1450mm deep on the straight with 280mm deep welded dish top and bottom. Anchor agitator driven by approximately 4 kW geared motor. Stainless steel heating / cooling jacket to sides and bottom dish. Internally rated for vacuum. Jacket rated for 0.5 barg.

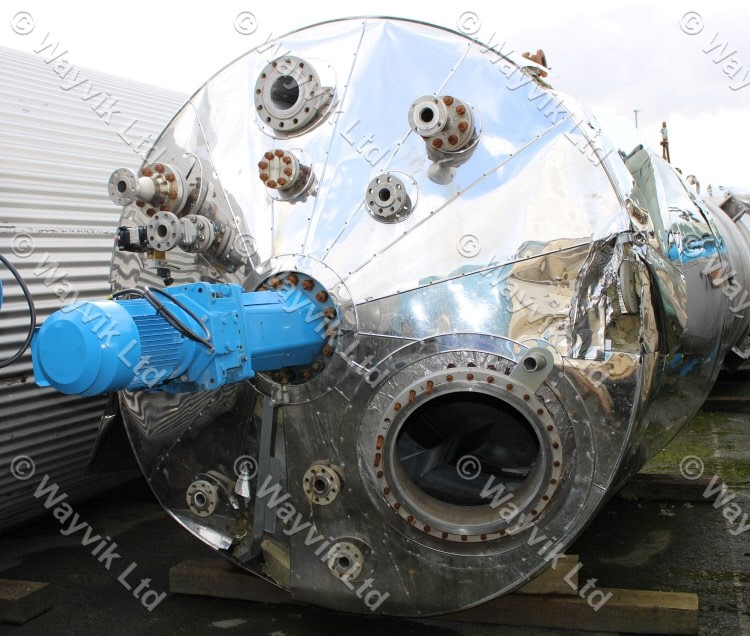

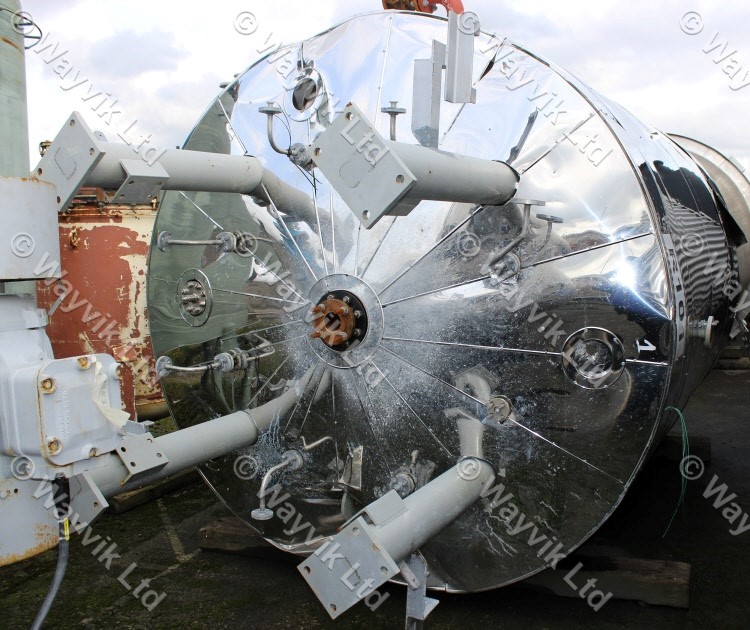

17260 Litres Gross Volume Inconel (Alloy 600) Vertical Reactor

2364mm internal diameter x 2500mm deep on straight plus 680mm deep welded top and bottom dishes. Chemineer Model 21GTN-5.5 5.5kW agitator with mechanical seal. Two sets of three blade "Type 2" impellers 875mm DIA. Internal design pressure 20 barg / full vacuum. External jacket design pressure 5.0 barg. Internal operating temperature 230 Celsius. Jacket temperature 220 Celsius. Manufactured by Langfields Ltd in 2013 to PD5500: Cat 2

11900 Litre Stainless Steel 316 Limpet Coiled Reactor

2140mm dia x 3060mm deep on straight with welded top and bottom dishes. External limpet coils to shell and base. Curtis Mixers model CM-5065-4220-A 9-97 stainless steel 3 stage agitator with 55kW EExdIIB T4 drive and reduction gearbox. Internally rated 3.6 barg / full vacuum. Limpet coils rated 5.5 barg.

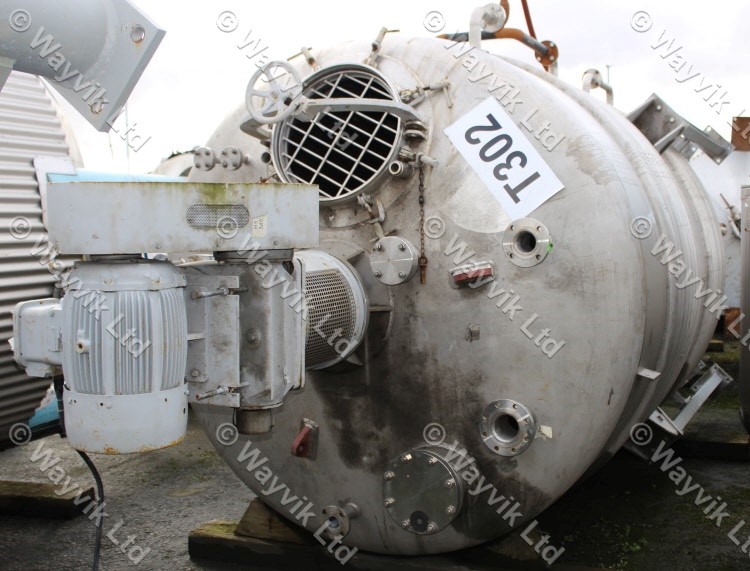

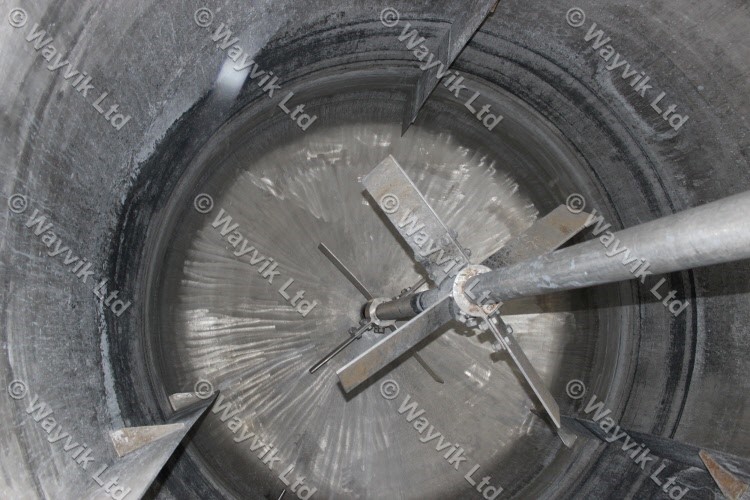

14400 Litres Stainless Steel Limpet Coil Reactor

2400mm diameter x 2900mm deep on straight with 420mm deep welded top and bottom dishes. 3 zone 75mm stainless steel limpet coil to shell and base. Curtis Mixers Limited "LCM 3244" agitator with two sets of four blade turbines on a common shaft. 18.5kW drive motor. Internal operating pressure full vacuum / 1.785 barg (25 psi). Limpet coil operating pressure 2.8 barg. Operating temperature 150 Celsius. Manufactured by J. K. Innes & Co.

15900 Stainless Steel 316 Limpet Coiled Reactor

2320mm dia x 3530mm deep on straight with fully welded top and bottom dishes. External limpet coils to shell and base. Curtis Mixers model CM-5319-4474 03/2000 stainless steel 3 stage agitator with 55kW EExdIIB T4 drive and reduction gearbox. Internally rated 3.6 barg / full vacuum. Limpet coils rated 6.5 barg.

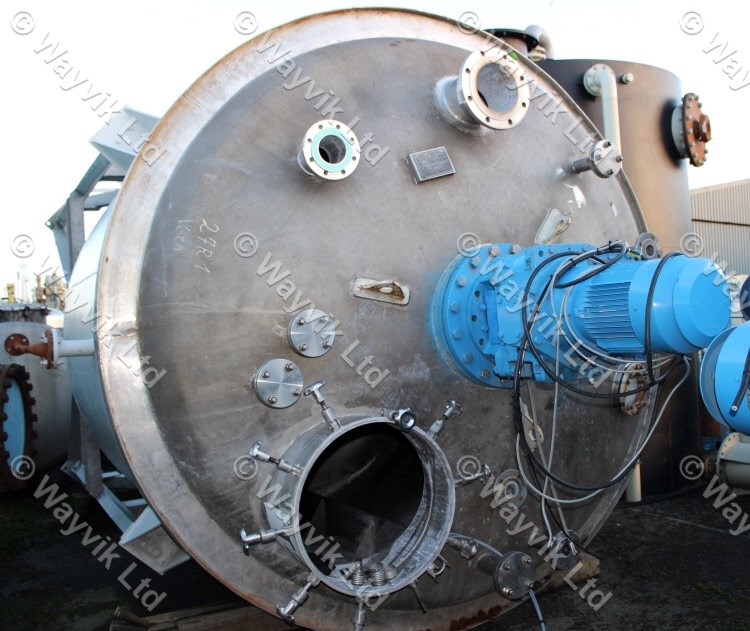

16000 Stainless Steel 316 Limpet Coiled Reactor

2300mm dia x 3540mm deep on straight with fully welded top and bottom dishes. External limpet coils to shell and base. Curtis Mixers model CM-4638-3793 stainless steel 3 stage agitator with 45kW EExdIIB T4 drive and reduction gearbox. Internally rated 3.6 barg / full vacuum. Limpet coils rated 6.5 barg. Manufactured by Sinclair Stainless Fabrications Limited

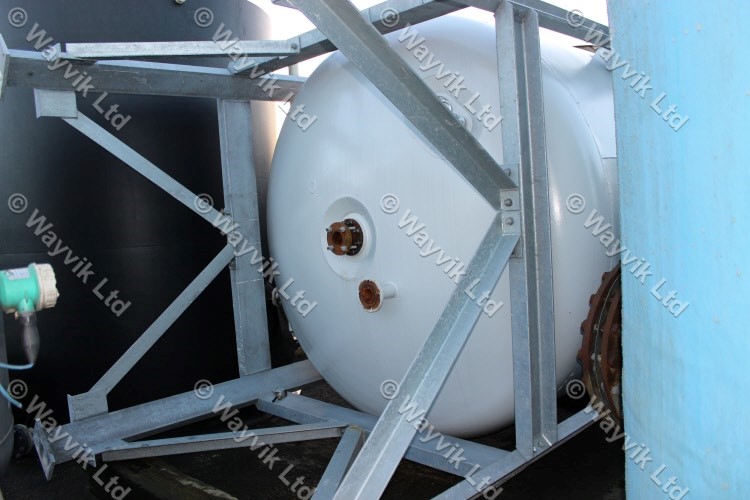

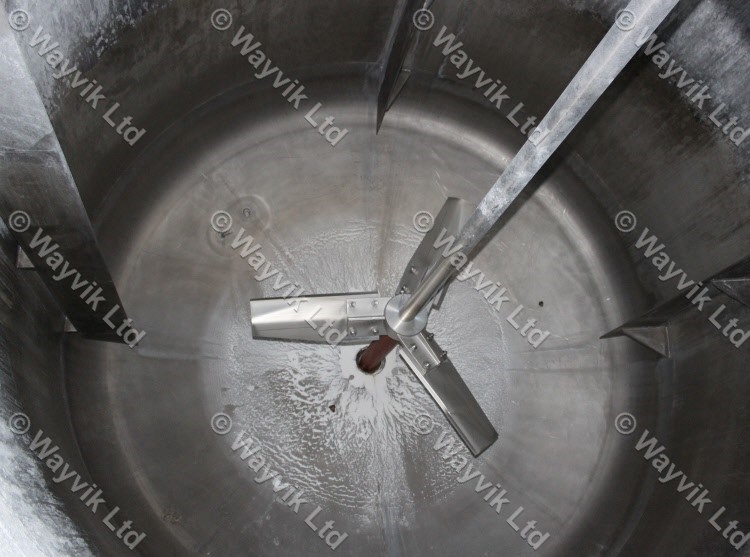

16000 Litre Stainless Steel Reactor

2540mm dia x 2170mm deep with fully welded top and bottom dishes. Mild steel jacket to sides and bottom dish. Chemineer type 22GTN-5.5 agitator with three-blade turbine and 5.5kW drive motor. Internally rated for 2.5 barg. Jacket rated for 3 barg. Mounted on four off braced mild steel legs. Manufactured by Kurt Rosskamp.

40000 Litre Stainless Steel 316L Reactor

3750mm dia x 2626mm deep on straight. Fully welded dished ends. "Mixertech" model 2168 agitator with two sets of four blade curved turbines and bottom set four blade angled paddle turbine. Double mechanical seal. 55kW 380-420/3/50 1460-rpm Eexd Zone I, IIA, IIB IP55 inverter rated motor Internal operating pressure: 3.5 barg & Full Vacuum. Stainless steel 304L external limpet coil operating pressure 5 barg. Internal stainless steel 316L coil operating pressure 7 barg. Manufactured by Pontifex
