Glass Lined Storage Vessels

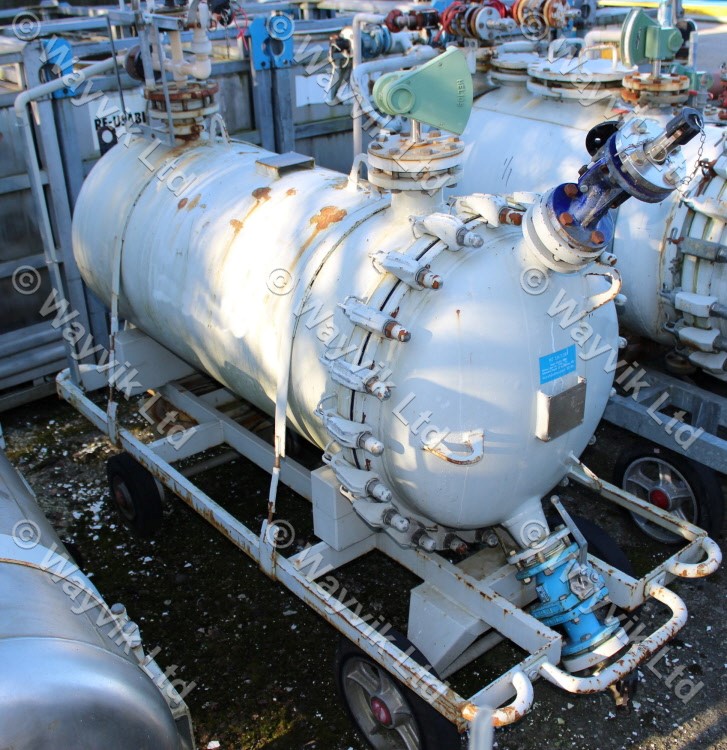

700mm dia x 1600mm long on straight with 120mm deep dished ends. One end fully removable with clamp closure. Internal working pressure 2 barg. Working temperature 200 Celsius. Mounted on mobile mild steel frame. Manufactured by Von Rohr A.G.

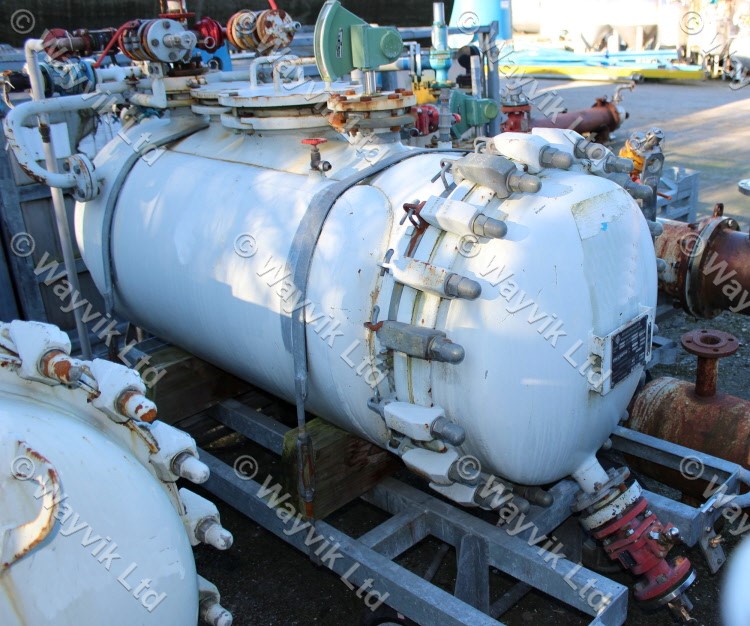

680mm dia x 1700mm long on straight with 120mm deep dished ends. One end fully removable with clamp closure. Internal working pressure 6 barg /  full vacuum. Jacket working pressure 6 barg. Working temperature -10 / 200 Celsius. Mounted on mobile mild steel frame. Manufactured by DeDeitrich.

1320mm dia x 1000mm deep on straight. 300mm deep fully welded dished top and bottom. 4 off mild steel legs. Design pressure 5.0 barg/Full Vacuum. Design temperature –10 to +200 Celsius. Manufactured by Cannon and refurbished by Pfaudler-Balfour.

1200mm dia x 1200mm deep on straight. 200mm deep dished base. Clamped top dish. Design pressure 5.5 barg / Full Vacuum. Manufactured by Pfaudler Balfour.

1200mm dia x 1350mm deep on straight. Fully welded dished base 230mm deep. Removable top dish with 22 off M24 x 100 clamps. Lined with 9125 (white) glass. Operating pressure: 5 barg / Full Vacuum. Manufactured by Pfaudler – Balfour.

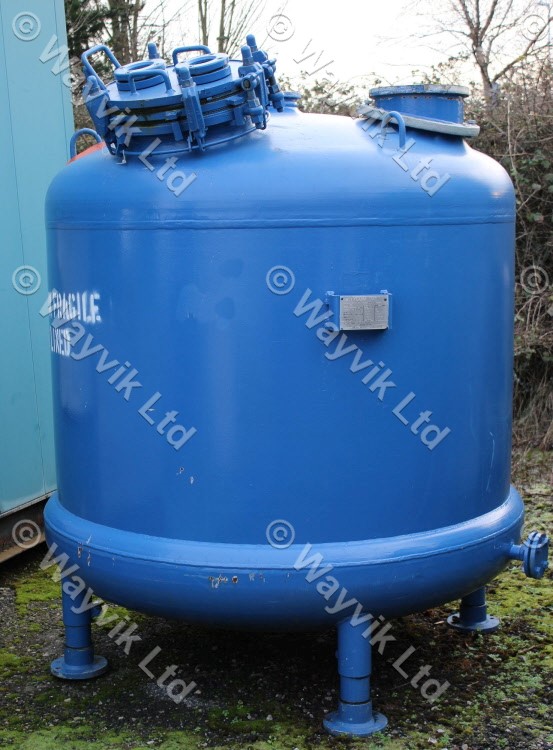

Mild steel temperature control jacket to bottom dish only. Internal working pressure 3.2 barg /  full vacuum. Working temperature 0 / 200 Celsius. Jacket working pressure 6 barg. Manufactured by Tycon.

1215mm dia x 1600mm deep on straight. Fully welded top and bottom dishes 380mm deep.No bottom outlet. Operating pressure: 7 barg / Full Vacuum. 9119 glass lining. Manufactured by Pfaudler – Balfour. Unused.
