1-1000 Litres Stainless Steel Pressure / Vacuum Vessels

!

89 Litre Stainless Steel Vertical Pressure / Vacuum Vessel

REF:VESSSLIQ0423
500mm dia x 300mm deep on straight. Rated for Full Vacuum / 8.6 bar working pressure at 2 - 110 C. Ex-pharmaceutical.

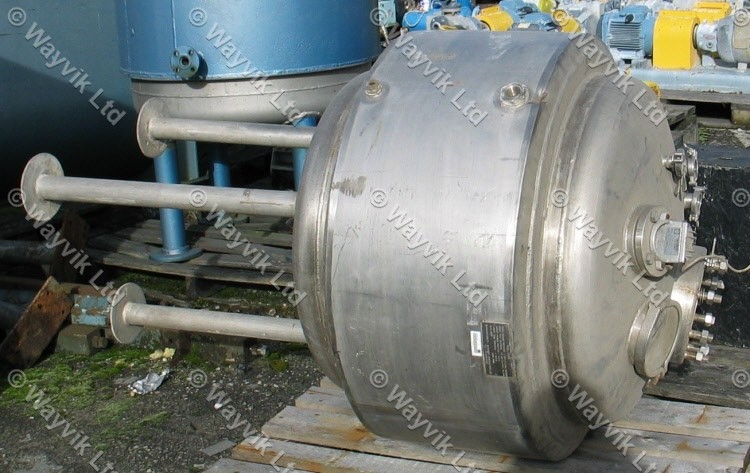

111 Litre Stainless Steel Vertical Jacketed Pressure / Vacuum Vessel

REF:VESSSLIQ0424
580mm dia x 370mm deep. Rated for Full Vacuum / 10.3 bar working pressure at 2 -100 C. Ex-pharmaceutical

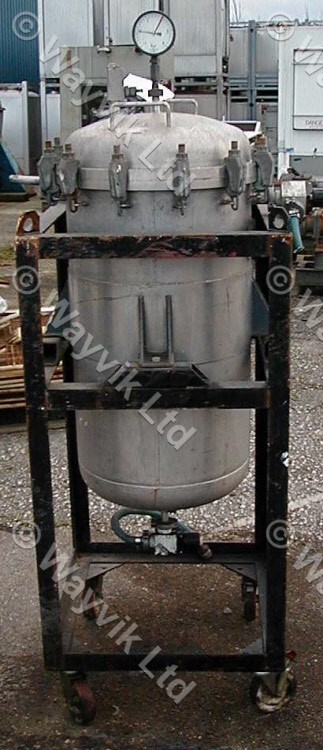

135 Litres Stainless Steel Vertical Pressure Vessel

REF:VESSSLIQ0205
460mm dia x 750mm deep on straight. 100mm deep welded dish base and removable dished top. Working pressure 2 bar. Manufactured by Agemore Surmet.

185 Litre Stainless Steel Vertical Pressure / Vacuum Receiver

REF:VESSSLIQ0422
600mm dia x 500mm on straight. Rated for Full Vacuum /10.3 bar working pressure at 2 -100 C. Ex-pharmaceutical.

220 Litre Stainless Steel Vertical Vacuum Receiver

Ormandy
REF:VESSSLIQ0295

600mm dia x 750mm deep on straight. Dished base and clamp on dished top. Manufactured by Newade Stainless Products Limited. Full vacuum design pressure. Ex-food product application.

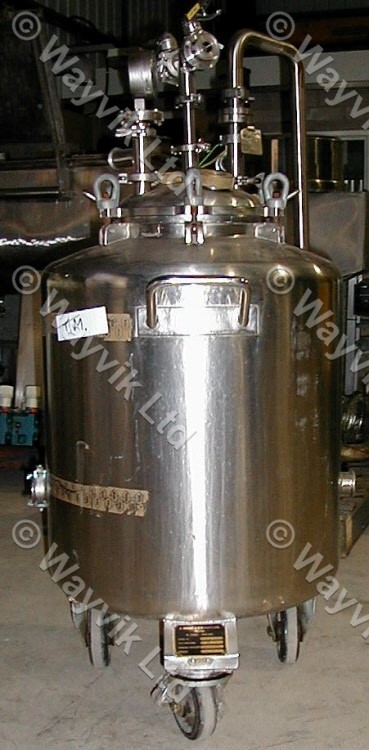

225 Litres Stainless Steel Vertical Vacuum Vessel

REF:VESSSLIQ0167
650mm dia x 620mm deep on straight. 80mm deep fully welded dished top and bottom.  Mounted on three castoring wheels.

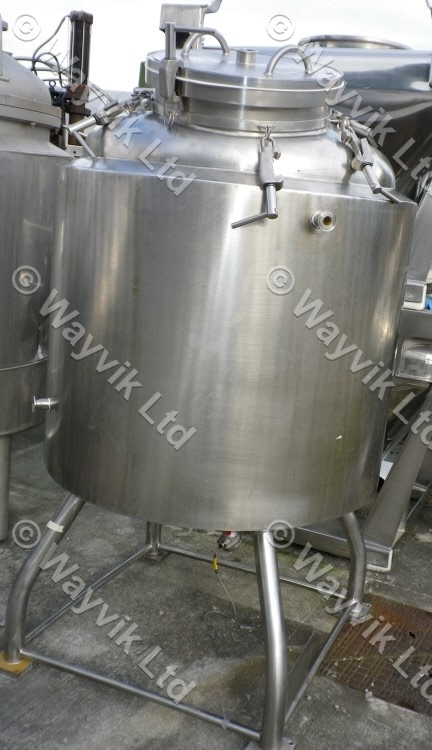

300 Litres Stainless Steel Vertical Jacketed Pressure / Vacuum Vessel

REF:VESSSLIQ0293
800mm dia x 600mm deep on straight side. 120mm deep fully welded top and bottom dishes. Vessel operating pressure 3 barg / Full Vacuum. Jacket operating pressure 4 barg.

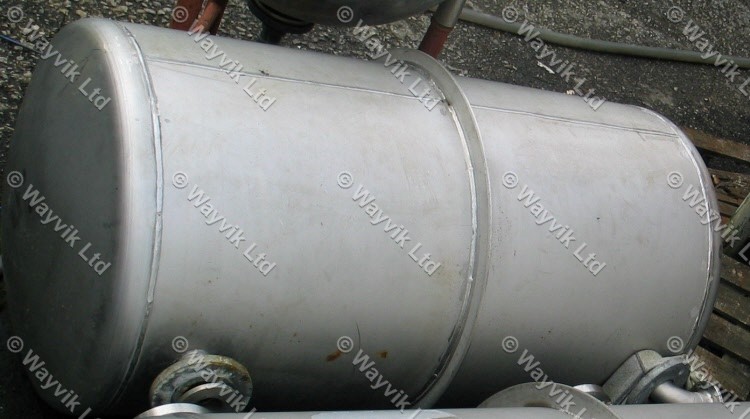

330 Litres Stainless Steel Horizontal Pressure / Vacuum Receiver

REF:VESSSLIQ0308A
680mm DIA x 1240mm LONG on straight. Fully welded dished ends 80mm deep.Operating pressure 0.3 barg / full vacuum. Design temperature 300 Celsius.

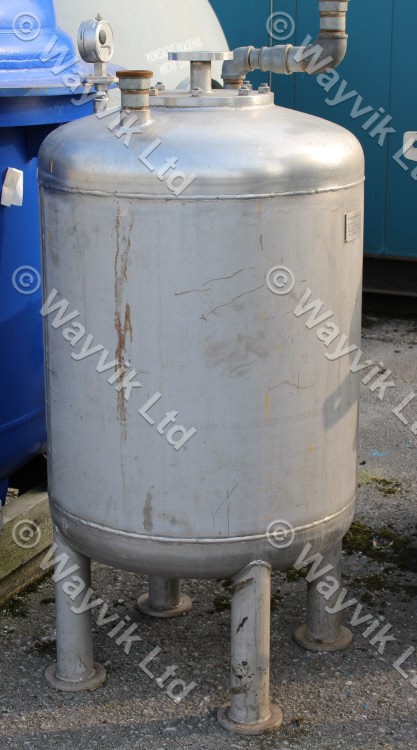

445 Litres Vertical Stainless Steel 316L Pressure Receiver

REF:VESSSLIQ0376
750mm DIA x 850mm deep on straight. Fully welded dished top and bottom. Operating pressure: 6.67 barg

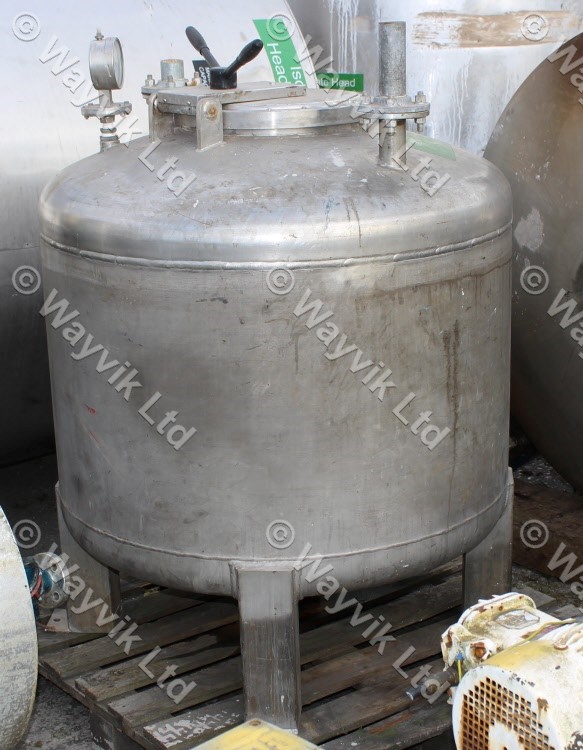

450 Litre Stainless Steel 316 Vertical Pressure / Vacuum Vessel

REF:VESSSLIQ0368
920mm dia x 600mm deep on straight with 120mm deep fully welded top and bottom dishes. Working pressure 4 barg / full vacuum.

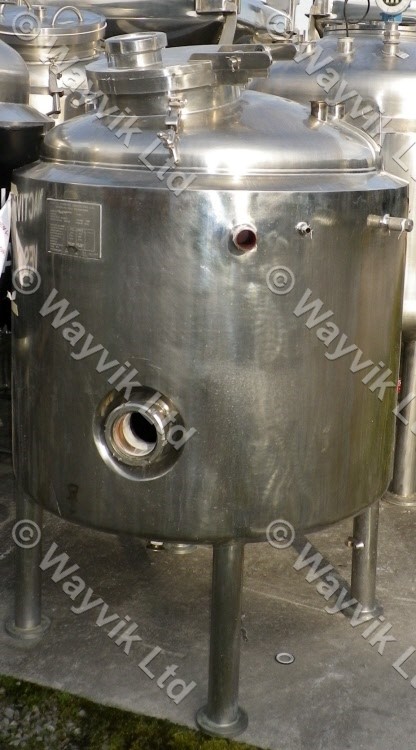

500 Litres Stainless Steel Jacketed Pressure Vessel

REF:VESSSLIQ0311
800mm dia x 800mm deep on straight with 160mm deep dished ends.Vessel rated 3.3 barg. Jacket rated 3.3 barg. Manufactured by Sinclair Stainless Fabrications.

565 Litres Stainless Steel Jacketed Pressure / Vacuum Vessel

REF:VESSSLIQ0312
850mm dia x 850mm deep on straight with 230mm deep dished ends.Vessel rated 3.0 barg and full vacuum. Jacket rated 5.02 barg and full vacuum. Manufactured by Vestec.

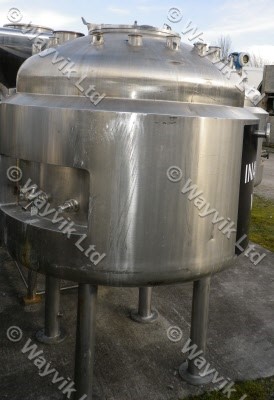

650 Litres Stainless Steel 316L Jacketed Pressure Vacuum Vessel

Bibbys
REF:VESSSLIQ0411

800mm dia x 1200mm deep on straight with 140mm deep dishes. 3 barg Full Vacuum internally. 10 barg Full Vacuum limpet coils. 180 Celsius. Welded cladding. Ex-pharmaceutical. Built by Bibbys of Halifax

850 Litres Stainless Steel 316L Jacketed Pressure / Vacuum Vessel

REF:VESSSLIQ0310
1165mm dia x 650mm deep on straight with 200mm deep dished ends.Vessel rated 4 barg and full vacuum. Jacket rated 5 barg and full vacuum. Manufactured by Agemore Surmet.

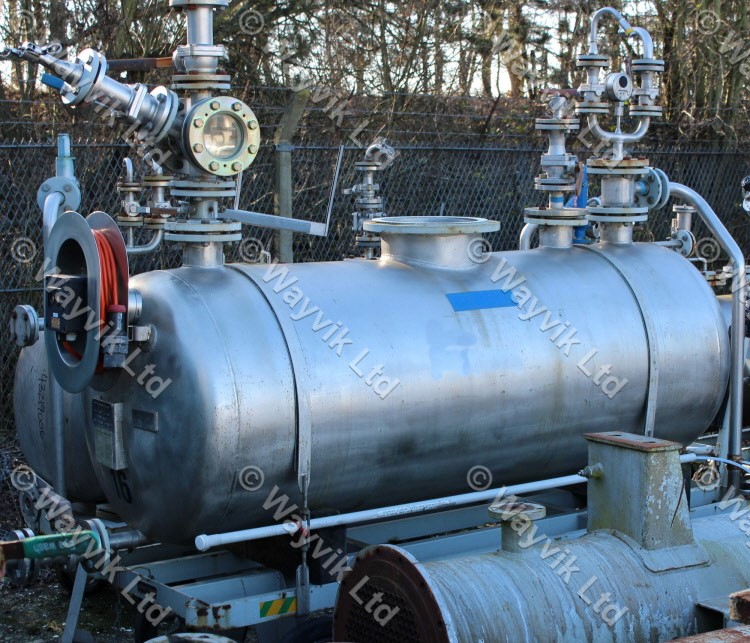

1000 Litre Stainless Steel 316L Horizontal Mobile Pressure / Vacuum Vessel

REF:VESSSLIQ0371
800mm dia x 1960mm long on straight with 150mm deep fully welded dished ends. Design pressure 3.2 barg / full vacuum. Working temperature 200 Celsius. Mounted on mobile mild steel frame.

1000 Litres Stainless Steel Pressure / Vacuum Vessel. Jacketed

REF:VESSSLIQ0330
1220mm dia x 770mm deep on straight. Fully welded dished top and bottom 220mm deep. Design pressure internal: 3.0 barg / Full Vacuum. Jacket design pressure: 3.0 barg

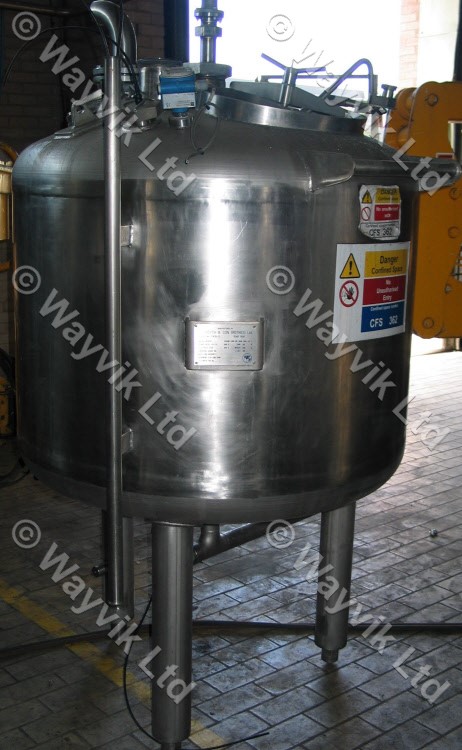

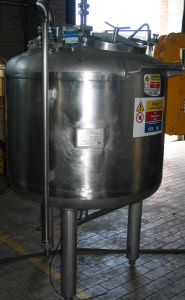

1000 Litres Vertical Stainless Steel Pressure / Vacuum Receiver

REF:VESSSLIQ0319

1200mm dia x 770mm deep. Fully welded dished top and bottom 200mm deep. Operating pressure: 1.5 barg / Full Vacuum. Manufactured by A. Forsythe & Son (Rothes) Ltd. Ex - brewery application.
