1001-5000 Litres Stainless Steel Pressure / Vacuum Vessels

!

1580 Litre Stainless Steel Vertical Vacuum Vessel

Sinclair Fabrications Ltd
REF:VESSSLIQ0363

1250mm DIA x 1220mm deep on straight with 220mm deep fully welded top and bottom dishes. Design pressure 1 barg / full vacuum. Manufactured by Sinclair Stainless Fabrications Limited

1580 Litre Stainless Steel Vertical Vacuum Vessel

Sinclair Fabrications Ltd
REF:VESSSLIQ0364

1250mm dia x 1220mm deep on straight with 220mm deep fully welded top and bottom dishes. Design pressure 1 barg / full vacuum. Manufactured by Sinclair Stainless Fabrications Limited.

1810 Litres Stainless Steel Pressure Vessel

1200mm dia x 1220mm deep on straight. Fully welded dished top and bottom 240mm deep. Maximum working pressure 5.5 barg.

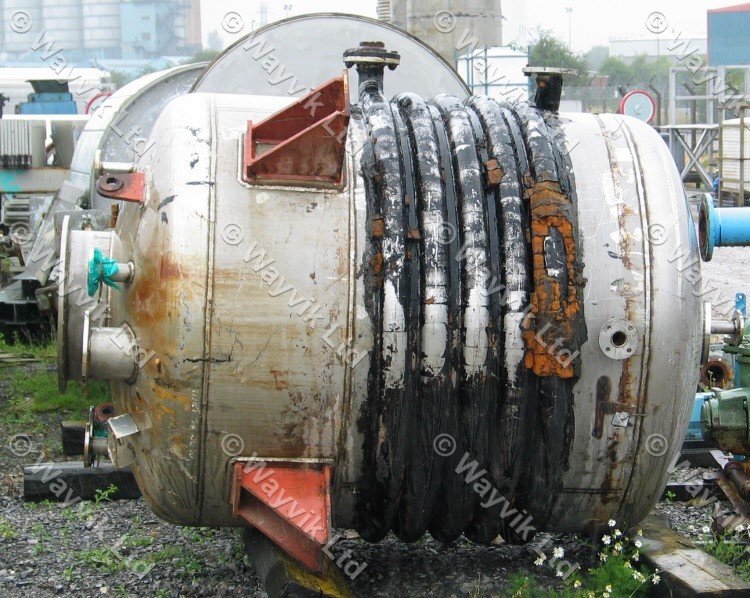

2000 Litres Stainless Steel Heated Vertical Pressure Vessel

1400mm dia x 1400mm deep on straight. Fully welded dished top and bottom. 5 wraps of stainless steel limpet coil. Rated internally 1.5 barg. Coil rated at 6 barg.

2160 Litre Stainless Steel Vertical Vacuum Vessel

Sinclair Fabrications Ltd
REF:VESSSLIQ0365

1420mm dia x 1220mm deep on straight with 220mm deep fully welded top and bottom dishes. Design pressure 1 barg / full vacuum. Manufactured by Sinclair Stainless Fabrications Limited.

2360 Litres Vertical Stainless Steel 316 Pressure / Vacuum Receiver

1220mm DIA x 1730mm deep on straight. Fully welded top and bottom dishes. Design pressure 7.0 barg / full vacuum. Manufactured by Pontifex.

2360 Litres Vertical Stainless Steel 316 Pressure / Vacuum Receiver

1220mm DIA x 1730mm deep on straight. Fully welded top and bottom dishes. Design pressure 3.5 barg / full vacuum. Manufactured by Pontifex

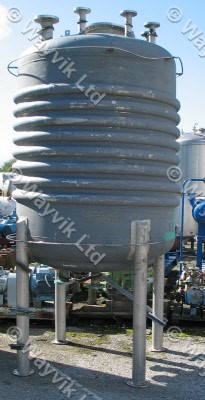

3250 Litres Stainless Steel Pressure / Vacuum Vessel. Limpet Coiled

1520mm dia x 1600mm deep on straight. Fully welded top and bottom dishes 300mm deep. Design pressure internal: 3.2 barg / Full Vacuum. Limpet coil design pressure: 6.6 barg. Manufactured by H. Pontifex & Sons.

3400 Litres Horizontal Stainless Steel 304 Pressure / Vacuum Receiver

1380mm dia x 2400mm long on straight. Fully welded dished ends 280mm deep. Working pressure: 45 psig / Full vacuum.

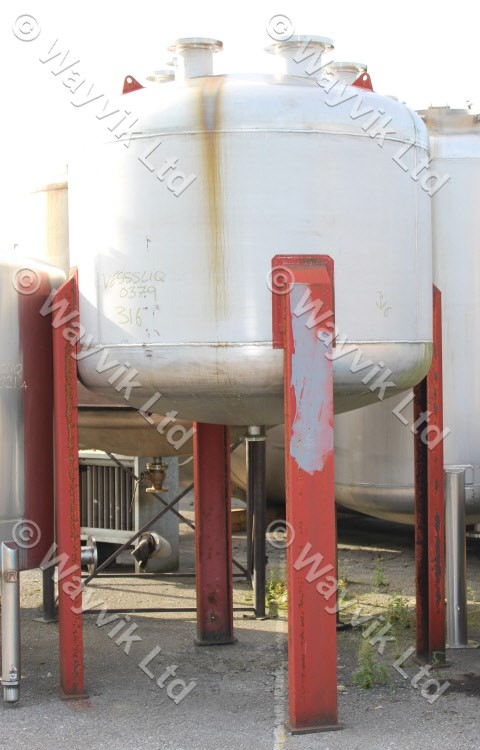

3900 Litres Vertical Stainless Steel 316 Pressure Vacuum Vessel

1840mm dia x 1060mm deep on straight. Fully welded top and bottom dishes. Working pressure 3.97 barg / full vacuum. Manufactured by Bibbys of Halifax.

3900 Litres Vertical Stainless Steel 316 Pressure Vacuum Vessel

1840mm dia x 1060mm deep on straight. Fully welded top and bottom dishes. Working pressure 3.97 barg / full vacuum. Manufactured by Bibbys of Halifax.

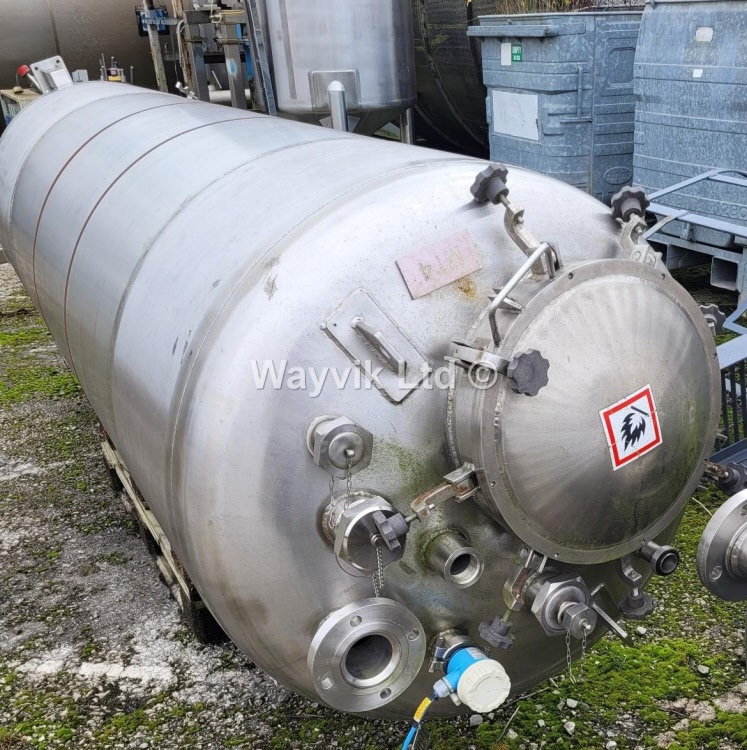

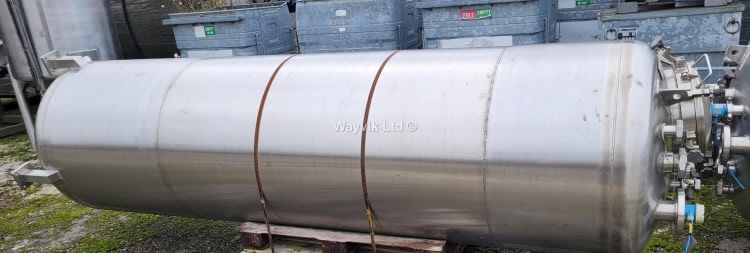

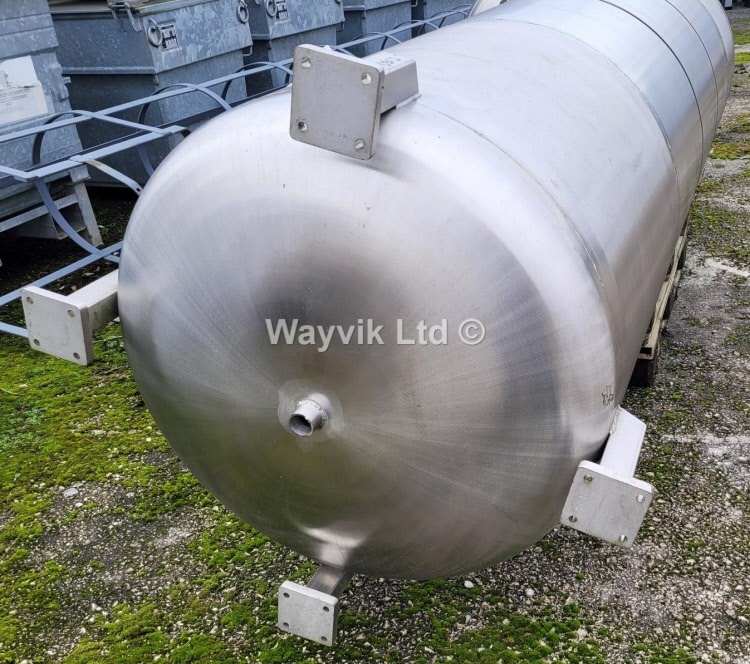

4000 Litres Stainless Steel Vertical Pressure Vessel

1180mm dia x 3600mm deep. Fully welded dished ends. Internally rated 7.07 barg.

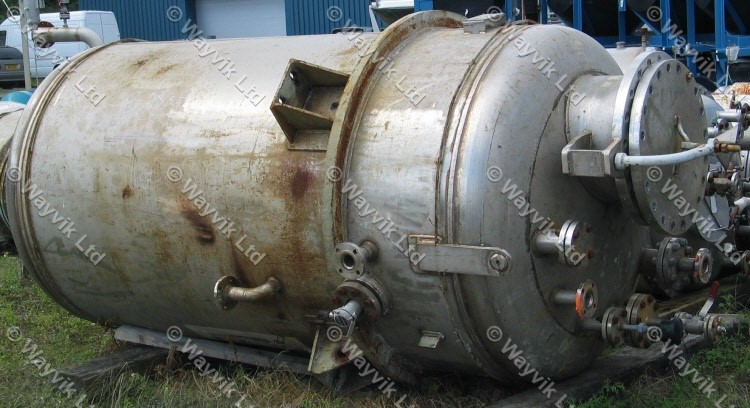

4500 Litres Stainless Steel 316L Vertical Vacuum Vessel

1680mm dia x 1830mm deep on straight. 330mm deep fully welded top and bottom dishes. Design pressure Full Vacuum.

5000 Litres Stainless Steel 316L Vertical Vacuum Vessel

1500mm dia x 2580mm deep one straight. 290mm fully welded top and bottom dishes. Design pressure Full Vacuum.
