20000+ Litres Stainless Steel Mixing Vessels

!

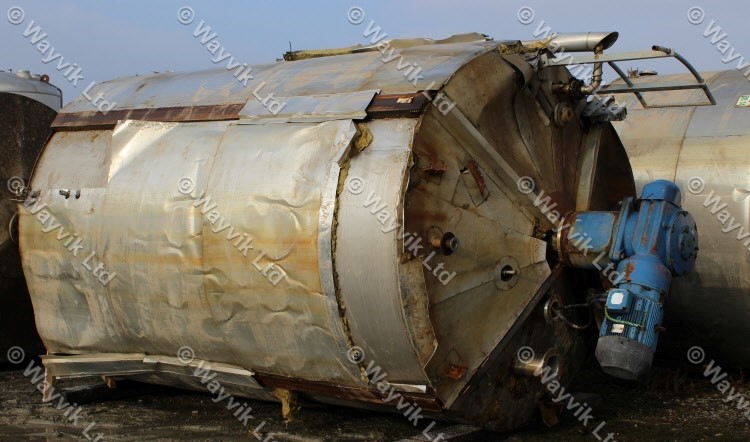

23800 Litre Stainless Steel 316 Mixing Vessel

2720mm DIA x 4100m deep on straight. Cone top & flat base. Internal coil. Curtis model CM5128-4283 agitator with 18.5kW 1470-rpm 415/3/50 motor and twin four blade angled paddle turbines. 60-rpm shaft speed.

32000 Litre Stainless Steel Mixing Vessel

3060mm dia x 4260mm deep. Flat top and 300mm deep cone base. Mounted on 4 on legs. 18.5kW EExd IIB T4 motor. Twin 4 blade paddle turbines.

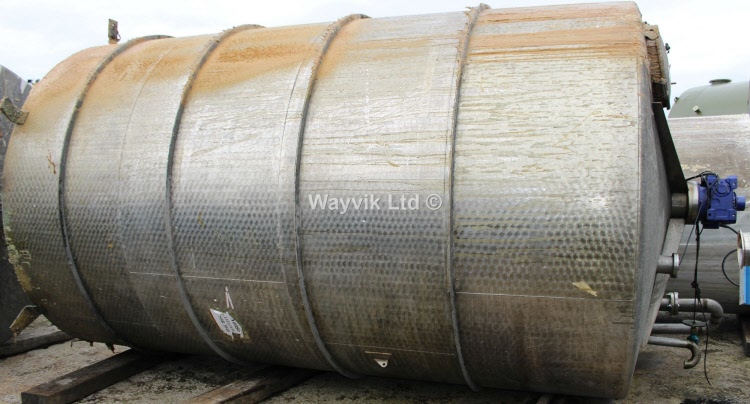

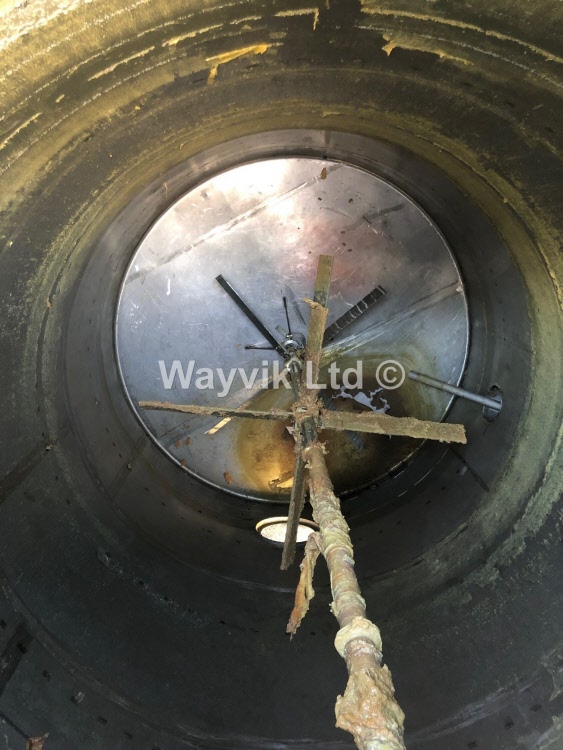

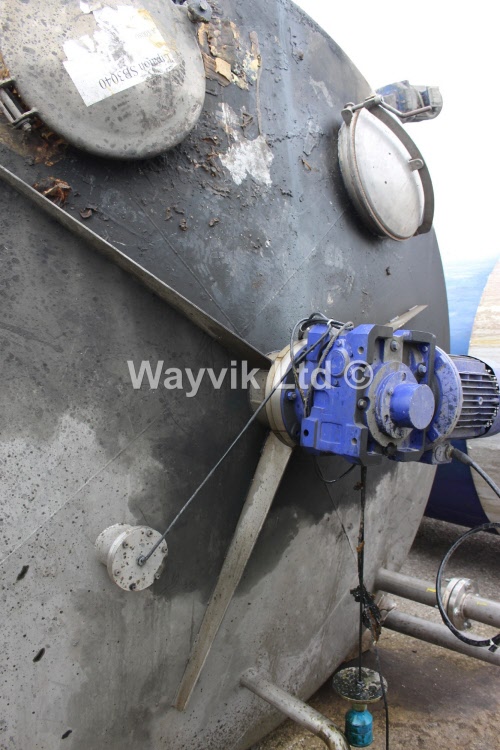

32500 Litre Stainless Steel Mixing Vessel

3000mm dia x 4510 mm deep. Flat top and 300mm deep cone base. Mounted  on 4 legs 18.5kW  motor. Twin 4 blade paddle turbines. Made by Sinclair Stainless Fabrications Ltd

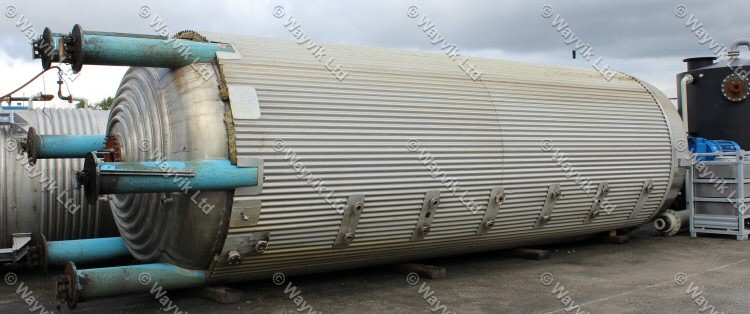

69000 Litres Stainless Steel 316L Limpet Coiled Mixing Vessel

3000mm DIA x 9000mm deep on straight. Fully welded dished top and bottom dishes. "Mixertech" model 5010 agitator with 5 sets of twin angled paddle blades with Ekato  "Intermig" style impellers. Bottom mounted four blade angled paddle turbine. 75kW 380-430/3/50 1470-rpm Eexd Zone I, IIA, IIB IP55 motor driving through a Flender reduction gearbox to give 30-rpm shaft output speed. Design pressure 1.0 barg & Full Vacuum. Stainless steel limpet coil design pressure: 5.0 barg. Manufactured by Pontifex
