Shell & Tube

!

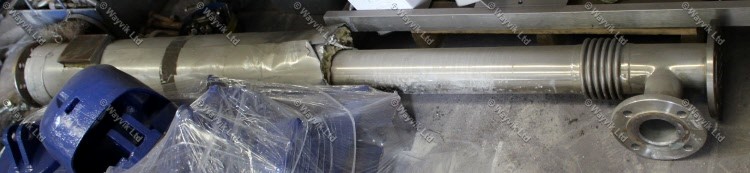

Stainless Steel Heat Exchanger Shell & Tube 1.4 sqm

13 off welded tubes 18mm OD x 2000mm long over tube sheets.  Shell diameter 104mm.  Rated for 6 barg & full vacuum on shell and tubes. Manufactured by HRS Heat Exchangers

Stainless Steel 321 Heat Exchanger Shell & Tube 1.45 sqm

12 tubes set as withdrawable U-bundle. 19mm OD x 2200mm estimated bundle length. Shell diameter 200mm. Removable stainless steel header. Shell side rated 4.0 barg design pressure. Tube side rated 14 barg design pressure. 200 Celsius shell and tube side.

Stainless Steel 316 Heat Exchanger Shell & Tube 3 sqm

44 tubes. 14mm OD x 1820mm over tube sheets. Shell diameter 160mm. Removable mild steel headers. Shell side rated 3.0 barg operating pressure. Tube side rated 3.0 barg operating pressure.

Stainless Steel 316 Vertical Shell & Tube Heat Exchanger 3.2 sqm

Poole Process
REF:HEATEXCH0183

36 off swaged  tubes 20 mm OD x 1490mm long over tube sheets. Shell diameter 200mm. Rated for 7.0 barg on shell & tubes. Manufactured by Poole Process Equipment Limited.

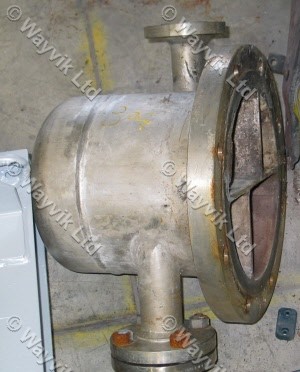

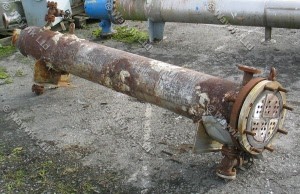

Stainless Steel 304 Heat Exchanger Shell & Tube 3.63 sqm

30 tubes set as withdrawable U-bundle. 19mm OD x 2200mm estimated bundle length. Shell diameter 250mm. Removable stainless steel header. Shell side rated 12.6 barg / Full Vacuum  design pressure. Tube side rated 12.6 barg / Full Vacuum  design pressure. 50 Celsius shell side and 190 Celsius tube side.

Stainless Steel Tubes and Headers Mild Steel Shell Vertical Heat Exchanger 8.5 sqm

61 off welded tubes 35mm ID x 1270mm long over tube sheets. Shell diameter 460mm. Shell side rated 60psig. Tube side rated 200 psig. Manufactured by Bramah Process Plant Limited

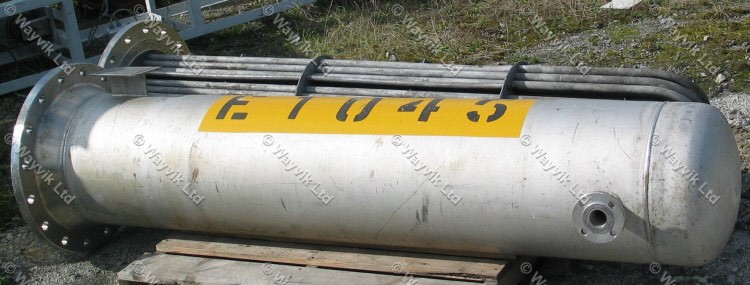

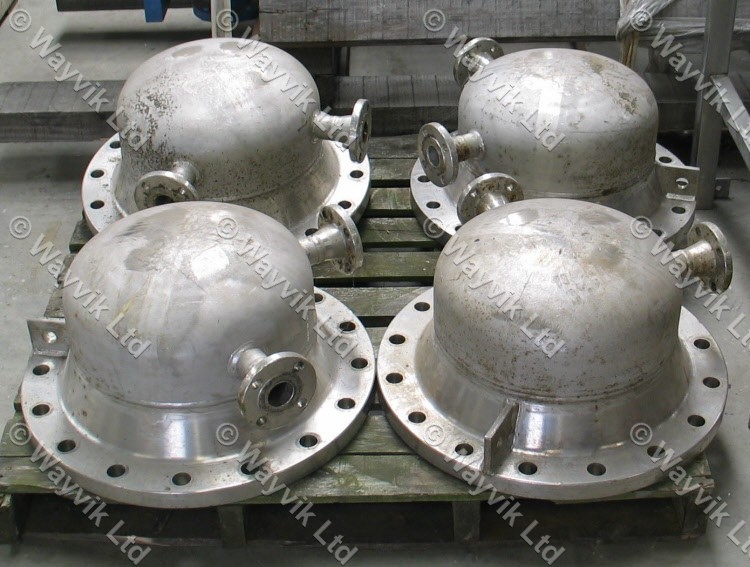

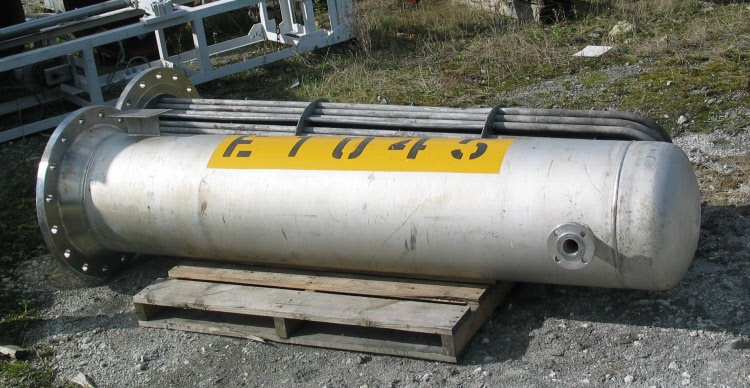

Stainless Steel 304 Shell & U-Tube Bundle Heat Exchanger 10 sqm

76 off tubes in withdrawable U-tube bundle 24mm OD 1850mm mean length. Shell diameter 400mm. Shell length 2050mm plus 270mm long header.

Shell side operating pressure 2.1 barg and full vacuum. Tube side operating pressure 10 barg. Shell and tube side rated for 260 Celsius. Manufactured by Ardeth Engineering Limited BS5500 Cat 1

Stainless Steel 304 Heat Exchanger Shell & Tube 10.97 sqm

60 tubes. 19mm OD x 3325mm over tube sheets. Shell diameter 250mm. Removable mild steel headers. Shell side rated 30 psig design pressure. Tube side rated 100 psig design pressure. 150 Celsius shell and tube side.

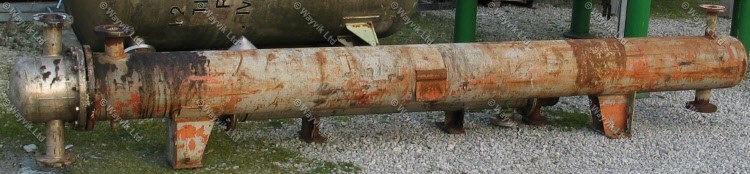

Stainless Steel 304 Heat Exchanger Shell & Tube 14 sqm

70 tubes set as withdrawable U-bundle. 19mm OD x 3650mm estimated bundle length. Shell diameter 300mm. Removable stainless steel header. Shell side rated 5.0 barg operating pressure. Tube side rated 3.0 barg operating pressure.

Stainless Steel Shell & Tube Heat Exchanger 14.6 sqm

144 off welded tubes 22mm OD x 1615mm long over tube sheets. Shell diameter 570mm. Rated for 60 psig on both shell & tube sides. Manufactured by F.W. Morrison Limited

Stainless Steel 316 Heat Exchanger Shell & Tube 16.7 sqm

112 tubes. 14mm OD x 3650mm over tube sheets. Shell diameter 300mm. Removable stainless steel headers. Shell side rated 8 barg design pressure. Tube side rated 8 barg design pressure. 0-160 Celsius shell side and tube side.

Stainless Steel Shell & Tube Heat Exchanger 16.9 sqm

82 off welded tubes 25mm OD x 2735mm long over tube sheets. Shell diameter 400mm. Shell side rated 2.8 barg. Tube side rated 6.9 barg. Manufactured by Thomas Morrison & Sons Limited

Stainless Steel Shell & Tube Heat Exchanger 23.6 sqm

172 off swaged tubes 19mm OD x 2425mm long over tube sheets. Shell diameter 400mm. Shell side rated 0.1 barg. Tube side rated 3.0 barg. Manufactured by Sutcliffe Croftshaw Limited

Stainless Steel 316 Heat Exchanger Shell & Tube 25.8 sqm

114 tubes. 18mm OD x 4250mm over tube sheets. Shell diameter 300mm. Removable mild steel headers. Shell side rated 2.08 barg design pressure. Tube side rated 5.78 barg design pressure. 75 Celsius shell side and 55 Celsius tube side.

Stainless Steel Shell & Tube Heat Exchanger 30.0 sqm

112 off swaged tubes 25mm OD x 3630mm long over tube sheets. Shell diameter 420mm. Rated for 75 psig on both shell & tube sides. Manufactured by Heat Transfer Limited

Stainless Steel Shell & Tube Heat Exchanger 30.3 sqm

113 off swaged tubes 25mm OD x 3640mm long over tube sheets. Shell diameter 400mm. Rated for 75 psig on both shell & tube sides. Manufactured by Heat Transfer Limited

Stainless Steel 304 Heat Exchanger Shell & Tube 34.45 sqm

188 tubes. 19mm OD x 3330mm over tube sheets. Shell diameter 360mm. Removable mild steel headers. Shell side rated 30 psig design pressure. Tube side rated 100 psig design pressure. 212 Fahrenheit shell side and 302 Fahrenheit tube side.

Stainless Steel Heat Exchanger Shell & Tube 37.3 sqm

272 off swaged tubes 18mm DIA x 2425mm LONG. 480mm DIA shell. Mounted horizontally on mild steel cradles. Rated for 6 barg / full vacuum on both shell and tube sides.

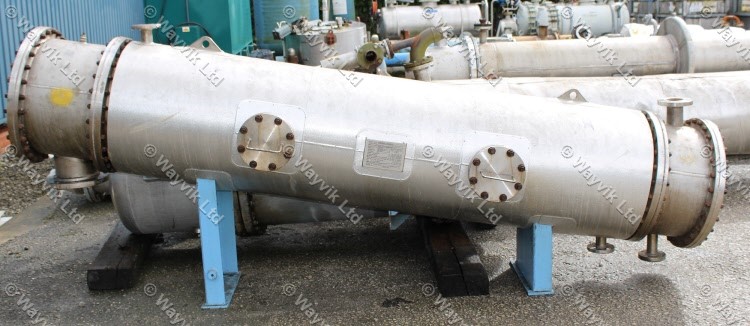

Stainless Steel 316 Shell & Tube Heat Exchanger 43.8 sqm

170 off welded tubes 30mm x 2880mm long over tube sheets. Shell diameter 610mm. Shell side rated 5.18 barg. Tube side rated 3.45 barg & full vacuum. Manufactured by HUNT-SECO Engineering Limited

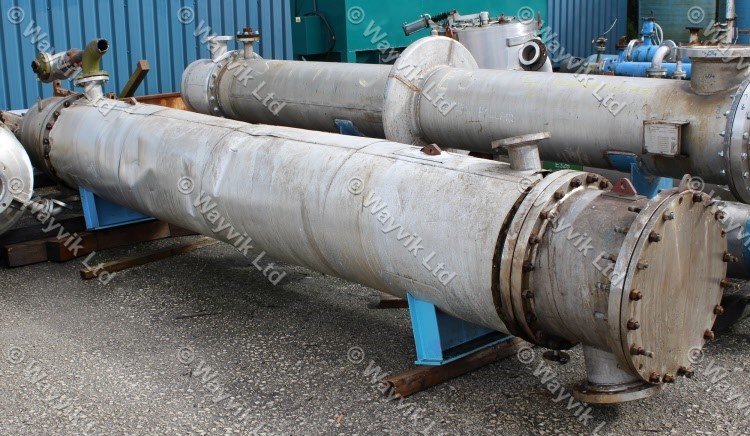

Stainless Steel 316 Shell & Tube Heat Exchanger 61.4 sqm

Poole Process
REF:HEATEXCH0182

209 off swaged tubes 25mm OD x 3980mm long over tube sheets. Shell diameter 565mm. Removable stainless steel headers. Shell side rated for 5.54 barg. Tube side rated for 3.5 barg. Manufactured by Poole Process Equipment Limited
