High Speed Dispersion Mixers

Netzsch Mastermix High Speed Disperser

Netzsch

REF:AGITATOR0135

15kW hydraulic drive with 0.55kW hydraulic raise and lower. Ex-rated

Netzsch Mastermix High Speed Disperser

REF:AGITATOR0137

18.5kW 1440 rpm 415/3/50 EEXd IIB T5 FLP main hydraulic variable speed drive. Hydraulic lift and lower. Mild steel "floating" vessel cover.

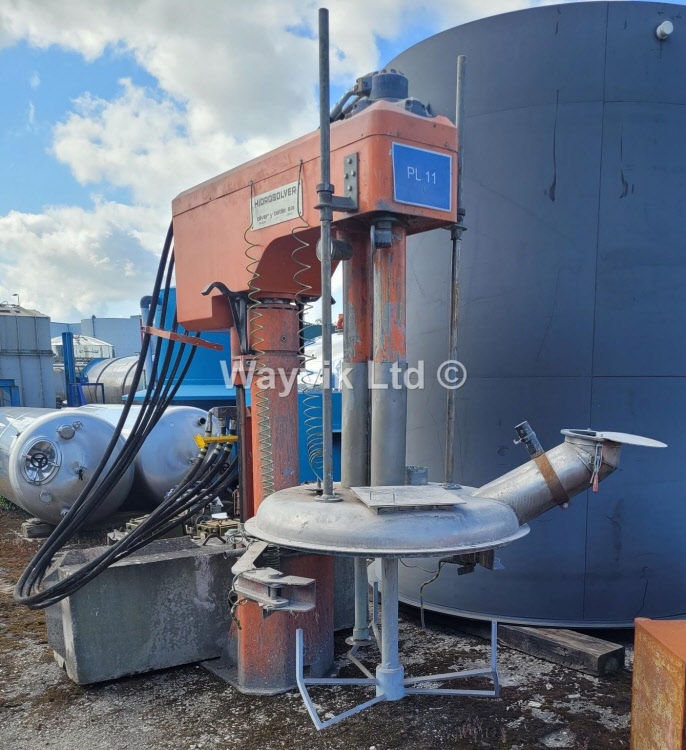

Oliver & Battle Hydrosolver H6011A Twin Shaft Dispersion Mixer. FLP

REF:AGITATOR0150

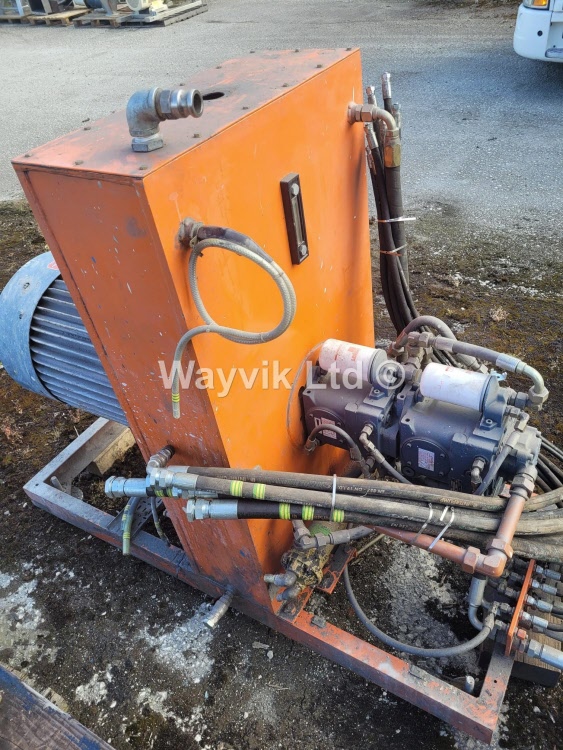

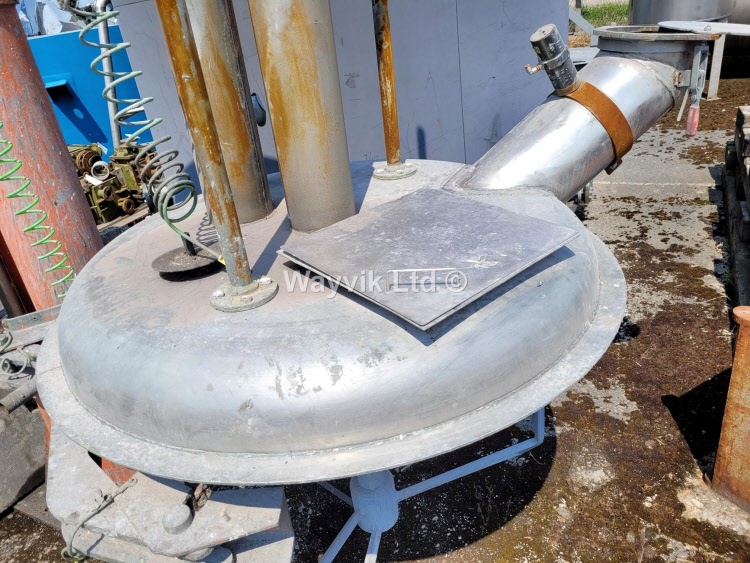

3-blade "Trifoil" with vertical extensions 980mm dia. High speed disperser - approx. 300mm dia saw tooth blade. "Floating" stainless steel top cover for vessels 1130mm DIA. 45kW 1470-rpm 415/3/50 EExd IIB T4 main drive. 3kW 1430-rpm 415/3/50 EExd IIB T4 secondary drive for lift / lower ram. Main and secondary drives are both variable speed.
