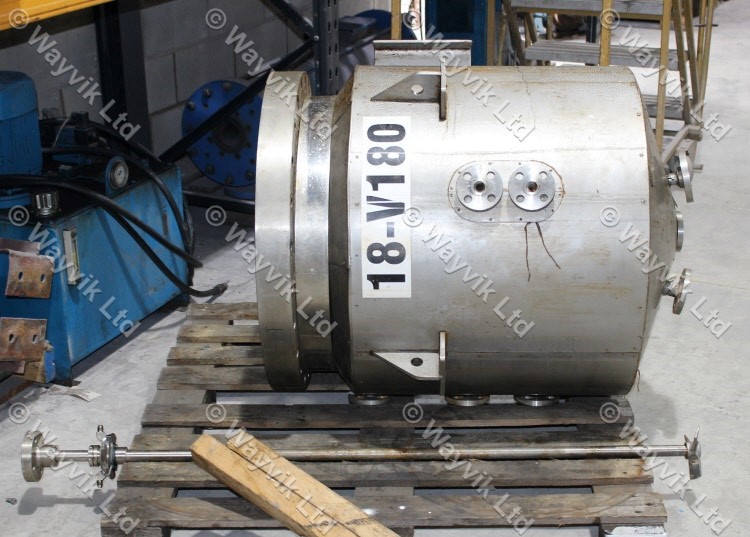

600mm dia x 707mm deep on straight side. Welded dished base. Bolted dished top. End configuration and depth: Approximately 130mm deep fully welded dished base and fully bolted dished top. Chemineer model 300TN-0.37 three blade angled turbine agitator with mechanical seal. 0.37kW 1350-rpm 380-415/3/50 EExd II 2G IIc T4 drive motor. Design pressure: 20.0 barg & Full Vacuum. Stainless steel jacket to shell and bottom dish design pressure 7 barg. Internal hastelloy C276 coil design pressure 7 barg. Manufactured by Bibbys of Halifax
